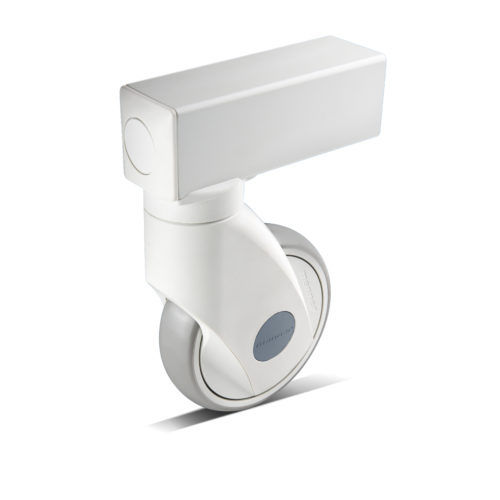

Polyurethane wheel FK50X50-ER90-S-125 GPF/K

polyamideswivelingwith brake

The Manner e-SMART castor is equipped with a central locking system. The superior ergonomics and safety of the patented castor locking system improve and facilitate work. e-SMART is designed to provide tangible benefits: safety, ease of use, ergonomics, economy, flexibility and design. Ideal for hospitals, care institutions and other places where easy and reliable central locking castors are required. The castor can be locked and released easily and ergonomically at the push of a button. The locking/unlocking actuator is embedded in the wheel and connected to the control system. The wheel is placed directly on the round or square tube, making it quick to install. The motion sensor allows automatic locking. Technical data Wheel diameter (mm):125 Hardness of the tread (shore A):80 Wheel width (mm):32 Centre material:Polyamide Load capacity (kg):150 Bearing type:Ball bearing Overall height (mm):172 Swivel radius (mm):105 Weight (kg):1.04 Brake type:Directional brake Brake control:Electric central locking
