Temperature test monitoring Min/Max Plus

compactdigitalUSB

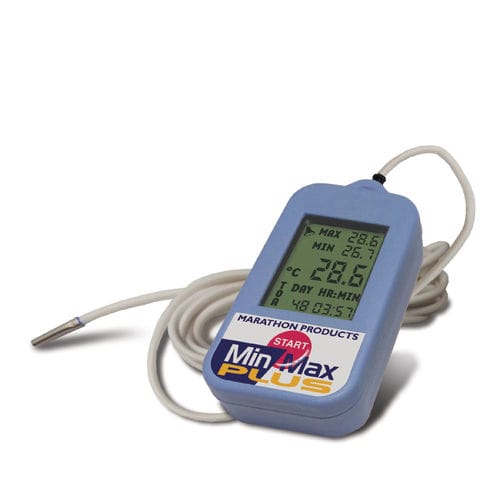

Compact, economical temperature monitoring with built-in external probe and real-time LCD display. -35°C to +85°C -31°F to 185°F The Min-Max Plus is a reliable cost-effective digital temperature recorder that is ideal for laboratories, blood banks needing low-cost real-time information. It has an external 2 meter (6.56 ft.) probe that can measure temperatures as low as -35°C LCD Display: View ambient or probed temperatures in real-time, prior to downloading data. Freeze Display: To freeze the display simply press the START button. To reset: simply press once again to reset and resume. Visual Alarms: This data logger features user-programmable alarm limits. Should the temperature reach levels outside these limits, the LCD will display an alarm. Alarms are visible until reset by the user. Operation is as easy as pressing the START button on the logger. USB Interface: Put the Min-Max Plus into the reader station to download recorded information. Small Form Factor: The thumb-sized format fits easily into small spaces. Specifications Memory EEPROM, Storage - 8k (7,680 data points) Operating Range - -35°C to +85°C / -31°F to +185°F Accuracy (NIST traceable) - ±0.3°C at 0° to 10°C / ±1.0°C at extremes 0.54°F at 32° to 50°F / 1.8°F at extremes Temperature Sensor - NTC probe with wired glass thermistor, SSt tube dia 3 mm, 2 cm long – IP67 Measurement Intervals - Programmable from 2 seconds per reading. See Duration Chart for examples. High and Low Alarm Limits - LCD display, ALARM set by temperature and time Computer Interface - USB Standard A to Mini B cable and Reader Station.
