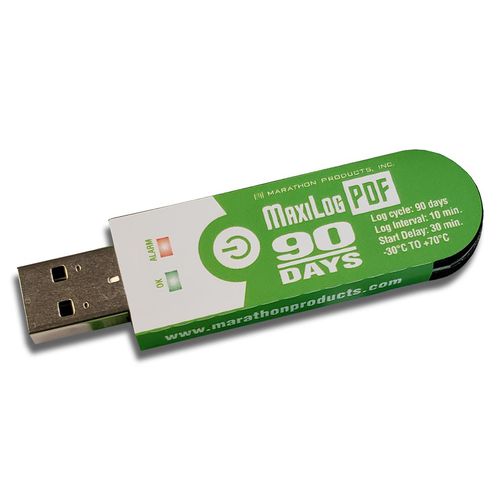

Temperature data-logger MaxiLog-PDF GEN2

for pharmaceutical productsfor cold chain monitoringUSB

The Maxilog–PDF GEN2 logger is now available for use in cold chain applications to escort critical temperature shipments of pharmaceuticals, seafood, product, dairy, meat, and other refrigerated products. The logger is programmed to operate for 90 days of continuous temperature recording. This logger is completely pre-programmed with a standard start delay of 30 minutes to allow the logger to adjust to the internal temperatures of the cargo being shipped. The unit is compact, lightweight and makes it ideal to fit inside small packages. No special software or drivers are required for set-up, or to download the temperature time-stamped data. When plugged into a USB port, the logger will automatically download the data to a Graph, Summary information and Tabular Results file. The logger is a mass storage device with memory storage of 14,400 readings, and measurement interval of 10 minutes. Monitor all your shipments with plug-and-play technology. Specifications External Sensor/Probe count and connector type - None Alarm Programming - Pre-programmed to 90 days. Alarm Modes - None Alarm Reset Options - None Alarm Notifications - Red LED flashes when button is pushed. Audible Alarm - None Display - None Indicators - OK/ALARM/MARK/Status Size and Weight - Length: 95 mm (3.7 in.) Width: 44 mm (1.7 in.) Depth: 7 mm (0.27 in.) Weight: 10.6 g (0.37 oz.) Box: 20 pcs. 344 g (.75 lb.) CE Certified - Yes Water-resistant - Yes, IP67 rated Internal Firmware, Internal Clock Accuracy - Internal Clock, Start/Stop time, Interval, Alarm values, Recording status, Firmware version, Serial number, Model. Measurement Intervals - Pre-programmed: 10 minutes intervals
