The infusion sets IS are used for intravenous gravity infusion of fluids from various containers including bags. Infusion sets are products for single use only, non-pyrogenic, non-toxic, sterilized by ethylene oxide.They are latex-free and phthalate-free (DEHP, BBP, DBP, DIBP).
Options:
- with a needle or needless injection site
- with the long tubing 150 cm., 180 cm.

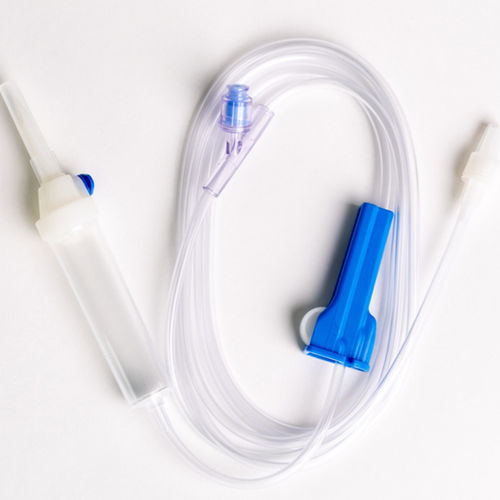

Particular elements of the infusion sets:
1) - Spike cover with longitudinal ribs for easy removal,
1. - Two-channel spike to preventing the infusion set from falling out of the container and the fluid from flowing out of the connection port,
2. - Luer lock connector with cap,
3. - Long medical tubing (150 cm., 180 cm.) made of phthalate-free (DEHP, BBP, DBP,DIBP) PVC,
4. - Hydrophobic air filter,
5. - Long PVC-free drip chamber with drip tube 20 drops = 1ml+/- 0,1ml, transparent, made of flexible plastic provides easy determination of fluid level and easy drop speed monitoring, soft and comfortable to use,
6. - Fluid filter with a mesh size of 15 μm,
7. - On/ off cap of hydrophobic air filter in blue,
8. - Additional injection site (with a needle or needless)
9. - Roller of the flow regulator with innovate geometry gives the possibility of precise dosing or stopping of the fluid,
10. - Flow regulator with a manufacturer’s logo,
11. - Place for the spike after use,
12. - Place for the tube.
