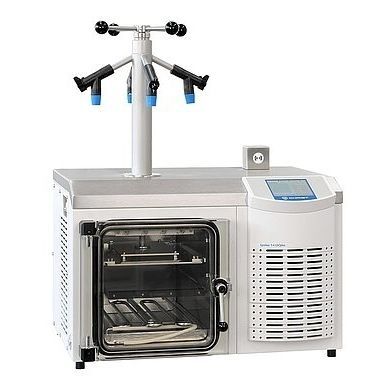

Laboratory freeze dryer Epsilon 1-4 LSCplus

pilotcompact

The Epsilon 1-4 LSCplus freeze dryer is a very compact, general purpose high-performance laboratory and pilot unit for tabletop installation. The application area of this unit extends from routine drying operations to process optimisation tasks. This unit is suitable for drying solid or liquid, mainly aqueous products in vials, ampoules, tubes, other glass containers or dishes. The integrated drying manifold design facilitates the use of round-bottom flasks and wide-neck bottles. The directly cooled and heated shelves made from Teflon coated solid aluminium enable especially fast cooling and heating processes. Ice condenser capacity: - 4 kg Ice condenser temperature: - –55 °C chamber volume: - 40 litres Shelf dimensions: - 270 x 400 mm (W x D) Number of shelves: - 1 Shelf area: - 0,108 m² Shelf spacing: - 140 mm with sealing device 172 mm without sealing device Shelf temperature: - –45 °C to +60 °C Shelf temperature accuracy: - max. ±2 °C Cooling system: - Air cooled (optionally water cooled) Ice condenser cooling system: - 1 compressor, 0,51 kW Shelf cooling system: - (see ice condenser cooling system) Unit dimensions: - 780 x 975 x 530 mm (H x W x D)
