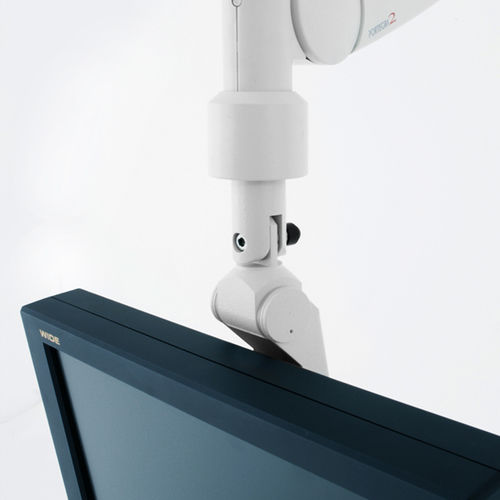

Spring arm GD4020 extensionfor monitorsmedical
Add to favorites
Compare this product
Characteristics
- Function
- spring, extension
- Applications
- for monitors
- Application domain
- medical
- Configuration
- ceiling-mounted
- Other characteristics
- VESA mounting
Description
Single monitor support for one 15” to 17” display with VESA adapter 100 mm and external cabling.
High load capacity up to approx. 10.0 kg
Fast and simple positioning
Adjustable tilt to allow a wide range of different viewing angles
The Smart Solution for One Monitor
The double jointed hinge allows for a wide range of different viewing angles as well as a sideways movement in the case of a minor collision.
Application
Single – monitor holder
VESA 100 adapter
For one flat screen/monitor/display, External Cabling
Load
max. 10.0 kg / 22.0 lbs
VESA Adapter
VESA 100 compatible
Colouring
RAL9002
Mounting
Portegra2 systems with Stationary / ceiling track mounting
System Range
Extension arm 750 mm / 950 mm, Spring arm 910 mm
