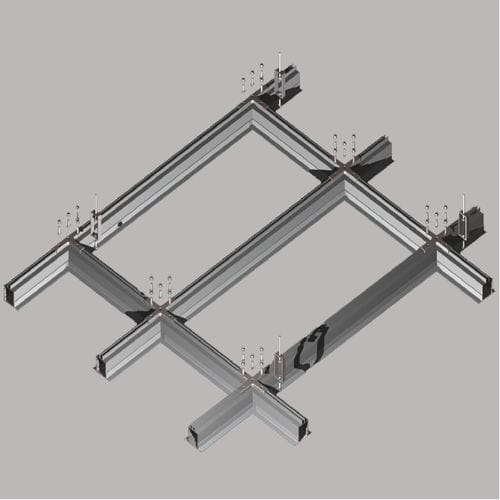

Clean room modular ceiling CK5000

The system is suitable to be installed in cleanroom class 1 to 100K. The ceiling grid system is designed for walkable and carry the loads of FFU, utility racking etc. Maximum uniform load is 200kg/sq.m and point load is 120kg (applied at any location along the grid). The system is non-progressive and demountable system which can be easily reusable and relocation. CEILING TEE Flush Grid Ceiling Tee DIMENSION Height: 78mm, Width: 66mm MATERIAL AL Alloy (6065-T5) PANEL TYPE 25 mm (t) aluminum honeycomb Panel edge sealed by 0.5mm GI sheet made framework PANEL DIMENSION: Thickness – 30 mm Width and Length – 520*1120mm or 1120mm*1120. APPLICATIONS Cleanroom walkable ceiling system FACINGS 0.5 mm PE Roll Coated Static Dissipative Surface Treatment Conductivity: R= 106Ω－109Ω or non-conductivity surface The surface is covered with a plastic foil (0.04mm) for the prevention of transportation or installation damages. Color: grey white CORE Aluminum Honeycomb, Diameter =15mm, Thickness=0.06mm ADHESIVE - Rebon YB2002 (resin) mixed with YB8001 (Hardener) Epoxy Past Adhesive Mixing Ratio, YB2002:YB8001=4:1
