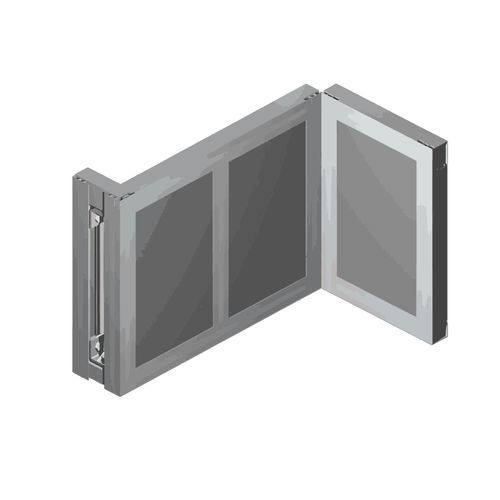

Clean room wall structure CL2000

with cladding panels

Non-Combustible - Class B1 Resists Temperatures - >100oC Water Absorption - Moderate Compression Resistance - >100Kpa Aluminum Core Thickness - 0.06mm Aluminum Honeycomb Diameter - D=13mm Compressive Strength - >200 kPa Flammable Gas Toxicity - Less PANEL TYPE Aluminum Honey Comb Panel MATERIAL AL Alloy (6065-T5) PANEL TYPE 7 mm (t) aluminum honeycomb Panels without close edge APPLICATIONS Cleanroom demountable front load wall system FACINGS 0.5 mm PE Roll Coated Static Dissipative Surface Treatment Conductivity: R= 106Ω－109Ω or non-conductivity surface or 0.5mm PE non-conductivity surface Or 0.8 mm PE Roll Coated Static Dissipative Surface Treatment Conductivity: R= 106Ω－109Ω The surface is covered with a plastic foil (0.04mm) for the prevention of transportation or installation damages. Color: grey white CORE Aluminum Honeycomb, Thickness=0.06mm ADHESIVE - Rebon YB2002 (resin) mixed with YB8001 (Hardener) Epoxy Past Adhesive Mixing Ratio, YB2002:YB8001=2:1
