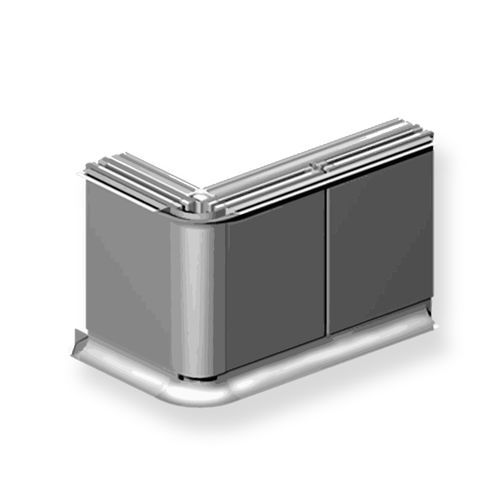

Clean room wall structure PM50

for the pharmaceutical industry

Fire Rating - >1 hour Thermal Conductivity - 1000oC Water Absorption - Moderate Compression Resistance - >40Kpa Noise Absorbing, at 125Hz - 0.07 Density, kg/m3 - 100 Compressive Strength - 150 kPa Flammable Gas Toxicity - Less Core Intenerate Temperature - >850 oC PANEL TYPE Rockwool Panel MATERIAL Lamella Rock Wool Slab PANEL TYPE 50 mm (t) rockwool Panel edge sealed by 0.8mm GI sheet made framework APPLICATIONS Pharma & Bio Cleanroom non-demountable caulking wall system FACINGS 0.5 mm PE Roll Coated Static Dissipative Surface Treatment Conductivity: R= 106Ω－109Ω or non-conductivity surface or 0.5mm PE non-conductivity surface The surface is covered with a plastic foil (0.04mm) for the prevention of transportation or installation damages. Color: grey white CORE Lamella Rock Wool Slab, Density = 100 kg/m3 ADHESIVE - Rebon YB2002 (resin) mixed with YB8001 (Hardener) Epoxy Past Adhesive Mixing Ratio, YB2002:YB8001=4:1
