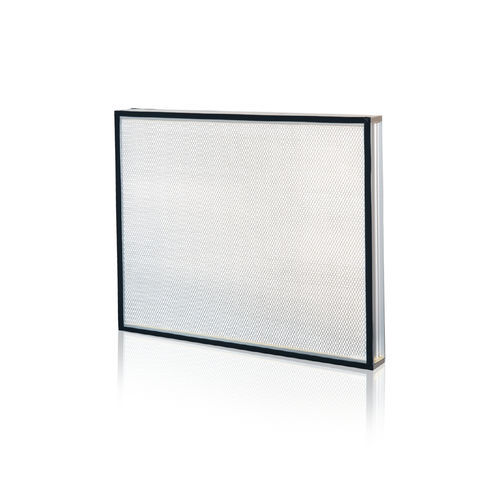

HEPA filter M-HII-PAO

airdustfor the pharmaceutical industry

Mini-pleat design, high quality fiberglass filter media Lower operational cost Compact structure, space-saving High dust loading capacity, long service life Efficiency (EN1822)：99.7%@0.3um(H13), 99.99%@0.3um(H14) MayAir’s HEPA/ ULPA non –separator filter comes with a test hole for leak test and scan test before delivery. This is to ensure the perfectness of each filter and to make sure they pass the stringent on-site performance test in pharmaceutical industries. Continuous Operating Temperature - : - Max. 80°C Operating Relative Humidity - : - ≤100 (%RH) Media Material - : - Ultra-Fiberglass Frame Material - : - Anodise Aluminium Frame Thickness - : - 50mm, 70mm, 90mm, 110mm Faceguard - : - Epoxy Powder Coated Steel Mesh Efficiency - : - H13, H14 (EN1822:2009) Separator Material - : - Hot Melt Bead Sealant Material - : - Polyurethane Glue
