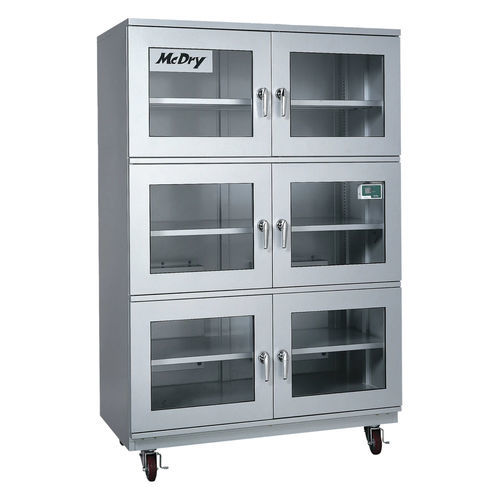

Dry storage cabinet DXU-1001A

on casterswith shelfwith door

THE DXU is our product range for high end Application. Without a centre column, you can store bigger Racks, while the two powerful zeolite Drying Units take care of humidity within acceptable range. 1%RH Quick Dehumidification Modell Open/close door: once every 30-45 minutes Capacity 1200 liters Shelves 5 Humidity level Extra low (1RH%) Drying Unit US-5000F x 2 Electrical requirement AC230V 50/60 Hz 64 W/h (MAX 700W) Locks RH Meter Casters Ground terminal During our Test, different Doors were opened for about one minute with a 15-20 min Pause in between. The McDry was able to consistently reduce the humidity to parameters with safe conditions. The powerful zeolite drying unit does not need nitrogen or replacement: it automatically recycles. The humidity meter adjusts for 1~ 70% residual humidity within a +/- 3% certified accuracy. ERC-301AD Upgrade: combine with the Alarm Tower to set an alert if the values drop out of the acceptable range. Specifications Static capacitance type Sensor Measuring Range 1-70% RH Accuracy: +/- 3% RH 4 AA Alkali Batteries; approx 1-year service life Alarm Settings 5%, 10% or 20% residual humidity Time Setting 60min, 120min or 180min Humidity Data after Alert: 100 readings within one hour The Battery allows or continous meassuring while power-outages or relocation. To ensure working within the acceptable range, you need to calibrate once a year. The powerful zeolite drying unit does not need nitrogen or replacement: it automatically recycles.
