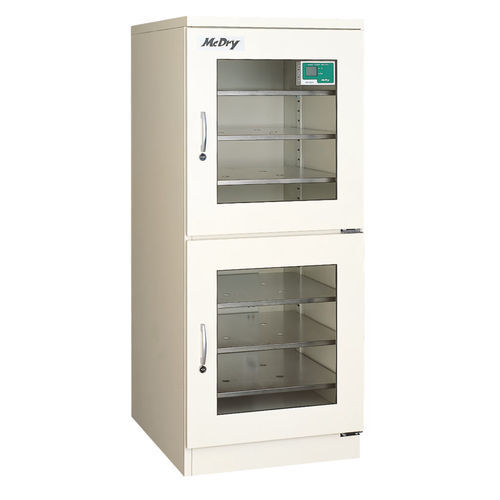

Dry storage cabinet MCU-301A
with shelfwith door2-door

Dry storage cabinet - MCU-301A - McDry - with shelf / with door / 2-door
Dry storage cabinet - MCU-301A - McDry - with shelf / with door / 2-door
Add to favorites
Compare this product


Characteristics

Components
with door, with shelf
Options and accessories
for dry storage
Number of doors
2-door
Weight

60 kg
(132.3 lb)

Height

1,200 mm
(47.2 in)

Width

500 mm
(19.7 in)

Depth

670 mm
(26.4 in)

Description

The MCU series is a cost-effective solution that still has a comparable storage size. If your product does not require much interaction (the time between opening should be less than 30 minutes), our MCU series is the right choice for you. 1% RH – Open/close door: once every 1-2 hours Capacity 310 liters Shelves 8 Humidity level Extra low (1RH%) Drying Unit USF-4000 Electrical requirement AC230V 50/60 Hz 25 W/h (MAX 240 W) Locks RH Meter Ground terminal During our test, various doors were opened for approximately 20 seconds to 2 minutes, with a 30-minute break in between. The McDry was able to constantly reduce the humidity to parameters that were within safe conditions. The powerful zeolite drying unit does not need nitrogen or replacement: it automatically recycles. The humidity meter adjusts for 1~ 70% residual humidity within a +/- 3% certified accuracy. ERC-301B Specifications Static capacitance type Sensor Measuring Range 1-70% RH Accuracy: +/- 3% RH 4 AA Alkali Batteries; approx 1-year service life Recommended for ISO-9000 The Battery allows or continous meassuring while power-outages or relocation. To ensure working within the acceptable range, you need to calibrate once a year. Our cabinets are made of high-grade steel and lockable doors in Japan. They feature an anti-corrosion coating, a fully adjustable rack system, glass windows, and an ESD-safe design.
