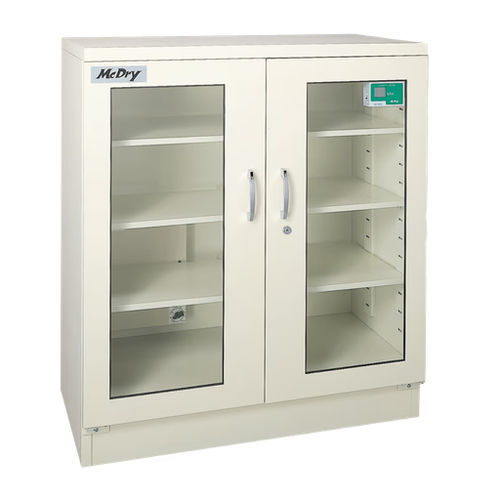

The MCU series is a cost-effective solution that still has a comparable storage size. If your product does not require much interaction (the time between opening should be less than 30 minutes), our MCU series is the right choice for you.
1% RH – Open/close door: once every 1-2 hours
Capacity
300 liters
Shelves
3
Humidity level
Extra low (1RH%)
Drying Unit
USF-4000
Electrical requirement
AC230V 50/60 Hz
25 W/h (MAX 240 W)
Locks
RH Meter
Ground terminal
During our test, various doors were opened for approximately 20 seconds to 2 minutes, with a 30-minute break in between. The McDry was able to constantly reduce the humidity to parameters that were within safe conditions.
The powerful zeolite drying unit does not need nitrogen or replacement: it automatically recycles.
The humidity meter adjusts for 1~ 70% residual humidity within a +/- 3% certified accuracy.
ERC-301B
Specifications
Static capacitance type Sensor
Measuring Range 1-70% RH
Accuracy: +/- 3% RH
4 AA Alkali Batteries; approx 1-year service life
Recommended for ISO-9000
The Battery allows or continous meassuring while power-outages or relocation.
To ensure working within the acceptable range, you need to calibrate once a year.
Our cabinets are made of high-grade steel and lockable doors in Japan. They feature an anti-corrosion coating, a fully adjustable rack system, glass windows, and an ESD-safe design.
