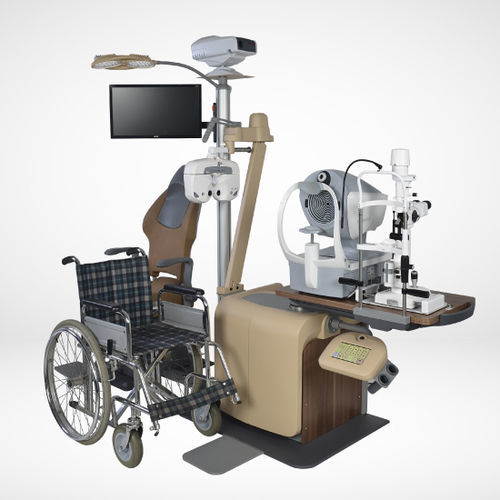

Ophthalmic workstation XDUE H

with chairwith lightcompact

Refraction unit with manual sliding table for 2 instruments. Table lock system in all positions. Electric up/down movement of the instruments table and combined patient chair rotation system suitable for visiting patients in wheelchairs also. Column with adjustable led lamp and projector support. 3 different control panel consoles: “compact” no drawers ; “highline” with 3 drawers and trial lens tray (code 10.190.13); “mix” with 1 drawer, trial lens tray and open compartment (code 10.190.15). Touch-screen. Hand instruments support. Counter balanced phoropter arm (optional code 15.901.00). Manual phoropter arm module (optional code 15.190.00). Automatic phoropter arm module . Wood finishing version is available for the instruments table top and structure side panels (optional code 15.190.90). Patient chair not included (any chair in the price list can be combined). A left-handed version is also available Power supply 230Vac 50Hz/60Hz (110Vac - 60Hz) Power Consumption 600VA Auxiliary outputs 230Vac 50Hz/60Hz max 100VA (110Vac - 60Hz) Working table voltage 3-15Vdc max 35VA / 230Vac 50Hz/60Hz max 100VA 110Vac 60Hz max 100VA COMPLY TO DIRECTIVES Medical Devices Directive 93/42 /CE and following modifications Machinery Directive 2006/42/CE and following modifications Low Voltage Directive 2006/95/CE and following modifications Electromagnetic Compatibility Directive 2004/108/CE and following modifications
