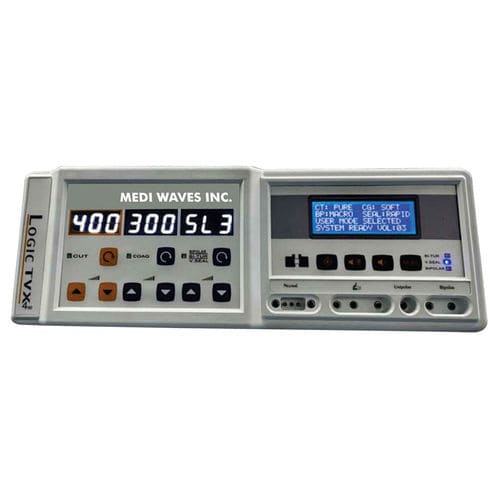

Vessel-sealing electrosurgical unit

saline coagulationcuttingminimally invasive surgery

Vessel Sealing Mode : Pure Sine wave 440 kHz, Seal – Pulse output mode, 3 Mode Saline Cut – Saline Plasma Cutting Variable 10W to 300W at 100Ω, CF 1.5. Saline Coagulation – Saline Plasma Coagulation Variable 10W to 150W at 100Ω, CF 1.5. PPQM System Measuring Frequency : 85kHz ± 10kHz Measuring Current : <10μA Dual Area PREM Patient Return Electrode : 5-135Ω Single Area Patient Return Electrode : <10Ω Applications Fields Ophthalmic, Laparoscopic, Surgery, Endo, GI, Ortho, Open & General Surgery, Oncology, Gynecology, Hernia, GI Endocytosis, Papillotomy, Polypectomy, Under Water, Urology, Gynecology TCRE, Hysteroscopy, Thoracotomy, Unit is suitable for all kind of Open, Endoscopic, Laparoscopic and Minimally Invasive Surgery Plastic, Neuro, ENT, Spine, Thoracic and Cardiac Surgery. Safety Standards Classification According to the EC – Directive 93 / 42 / EEC. Class llb. General Safety Standards : IEC 60601-1-1, IEC 60601-2-2 EMI/EMC Compatibility Standard : IEC 60601-1-2 IS Safety Standard : IS 7583 Leakage Current HF Leakage : Monopolar <150mA RMS-Bipolar <60Ma RMS. Low Frequency : Normal Polarity, intact ground : <10µA. Normal Polarity, ground open : <50µA Input Power Operating Voltage : 190-260Volt 50Hz AC, (Optional 90-120Volts 60Hz AC) Dimensions L x W x H – 350 x 350 x 130mm Net Weight in 5 Kg.
