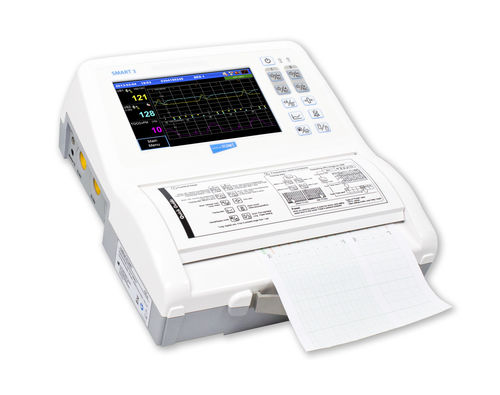

Twin FHR fetal monitor Smart 3

FHRTOCOwith printer

Smart 3 Twin Fetal Monitor with 7" TFT Touch Screen Color Display • Recording of the child movement of both fetuses (Fetal Movement) • High sensitivity due to 1 MHz probe frequency • Printing of all parameters in A5 format • Integrated base CTG analysis incl. STV • Documentation of the system data on the call for the trigger • Freely configurable note list for use during CTG recording • Adjustable alarm limits and acoustic alarming • 72 hours of data storage and volume control • Battery operation: up to 2 hours with fully charged battery • Network-capable via LAN for data transfer LAN, Wi-Fi converter (optional) • Transfer of stored data to an USB memory (JPEG) • Live transmission to free central software for archiving data on the PC • Central software with up to 16 connectable devices (optional) • Acoustic stimulator (optional) • Rechargeable battery (optional) Technical details: Dimensions: 296 (W) x 305.5 (D) x 97.5 (H) Weight: 2.9 kg Power supply: mains or battery operation Voltage: 100 - 240 Volt AC / 50-60Hz / 1.5A Current consumption: 60 watts (max.) Safety: Class II / Type BF Humidity: 30 x 85% Operating temperature: 10° x 40° C (50° x 104° F) Pressure: 70 x 106 KPa Included are: - 2 ultrasonic probes with 1 MHz - 1 toco probe for uterine contraction - 1 patient marker - 2 rolls of paper - 1 ultrasonic gel - CTG belt set (3 pcs.) - power cable
