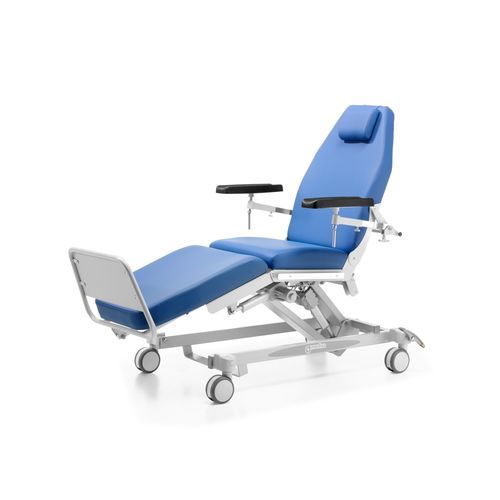

Electric treatment chair Diamed 2

3-sectionwith legrestheight-adjustable

A specialty chair that adapts to the needs of each user Base Structure made of steel tube with epoxy coating Lifting system that provides great stability and load up to 230 kg Comfort Useful area at 100% Articulation of the bed base planes by means of low voltage electric motors Independent back-height-leg movements The ergonomic and foldable PUR armrests facilitate access to the patient Handling The chair control pad allows you to regulate both the backrest and leg sections independently and synchronously, such as height, trendelenburg or patient exit position Four 125 mm diameter swivel wheels with centralized and directional brake system Electrically adjustable footrest Two pre-programmed functions: Shock position (emergency trendelenburg) Starting position Safety Automatic lowering lever (CPR) in case of emergency Upholstered in self-extinguishing vinyl fabric according to M2 standard for easy cleaning and maintenance Technical data Extended dimension:220 x 87,5 cm Patient surface dimension: 214 x 57 cm Backrest dimension: 88 x 57 cm Legrest dimension: 72 x 57 cm Height adjustment: 51-76 xm Trendelemburg: 25º Maximum weight load: 230 kg Weight without accessories: 98 kg Electrical characteristics Power supply: 100-240V 50-60Hz Maximum consumption: 1.6A Protection indicator: IP54 Protection class: Class II Degree of protection against discharge: Type B
