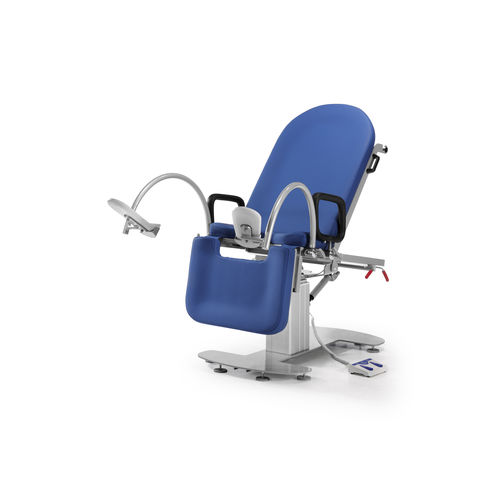

Gynecological examination table FIX Hi Low

manualheight-adjustableon casters

MATTRESS: Base over 4 Ø125 mm with individual brake. Height adjustment by telescopic column. Minimum and maximum height adjustment: 83/123 cm. Epoxy coated steel tube frame. COMFORT: Foldable and easy detachable leg rest, allowing several positioning and horizontal or flat position for ultrasonic examination purpose. M1 upholstery (fire proof and antibacterial) easy to clean and maintain. Back and seat rest made of polyurethane foam of high density to provide suitable comfort. “C” shape seating area. HANDLING: The adjustment for height and Trendelemburg is made by gas spring, placed on the lying platform for an easy handling. SECURITY: In compliance with directive 93/42/CE TECHNICAL DATA: Total length: 1850 x 600 x 650/900 mm Backrest dimensions: 800 x 600 mm Pelvis dimensions: 410 x 600 mm Legrest dimensions: 300 x 600 mm Height range: 830-1230 mm Backrest tilting: 70ª Trendelemburg: 21º Weight without accessories: 92kg Optional accessories: PUR made armrests Ref: MB-GINE-01 Paper roll holder Ref: MB-GINE-02 Adjustable proctology device Ref: MB-GINE-04 Normative All products manufactured by Medisa comply with the directive 2007/47/CEE concerning medical devices (Annex I y Annex VII). All processes have been evaluated and certified by standard requirements UNE-EN ISO 9001:2008 about Quality Management System and the standard UNE-EN ISO 14001:2004 of Enviroment Management System. Certified by Bureau Veritas. CERTIFICATES Nº ES047196-1 / ES047195-1 Scope: design, manufacturing, marketing, technical assistance for hospital beds and chairs. STRUCTURE • The base rests on 4 rotating wheels with brakes that have a diameter of 125 mm.
