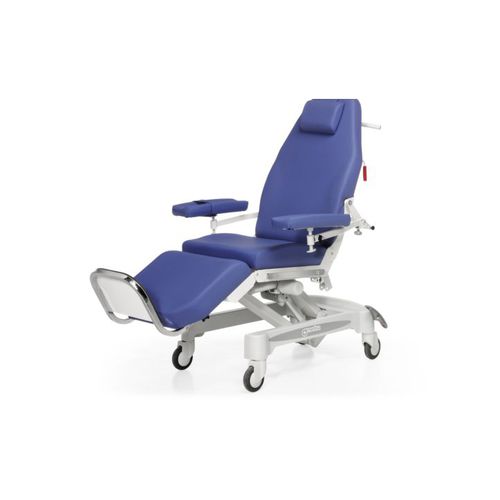

Electric treatment chair Diamed Basic

3 sectionson castersheight-adjustable

A specialty chair that adapts to the needs of each user category Structure made of steel tube with epoxy coating Lifting system that provides great stability and load up to 230 kg Comfort 100% useful surface Articulation of the bed base planes using low voltage electric motors The ergonomic and foldable PUR armrests facilitate access to the patient Included in the standard equipment: headrest, transfer handle, paper roll holder and ribbon for different accessories Handling The chair handset allows you to adjust the height, backrest and legs, as a cardiac chair or trendelenburg position. Four 125 mm diameter castor wheels with centralized and directional brake system Safety Automatic lowering lever (CPR) in case of emergency Thermoplastic lower fairing that protects and facilitates cleaning Technical data Extended dimension: 204 x 87,5 cm Patient surface dimensión: 197 x 57 cm Backrest dimension: 88 x 57 cm Legrest dimension: 46 x 56 cm Height adjustment: 54,5-79 xm Trendelemburg: 13º/2º Maximum weight load: 230 kg Weight without accessories: 98 kg Electrical characteristics Power supply: 100-240V 50-60Hz maximum consumption: 3,15 A Protection indicator: IPX6 Protection class: Clase II Degree of protection against discharge: Tipo B
