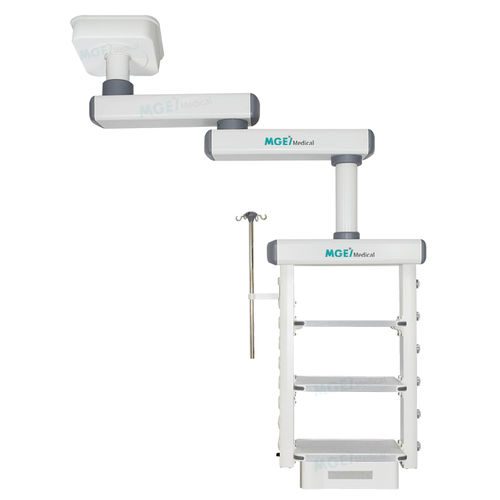

Medical pendant MGE-STP3D

ceiling-mountedendoscopyarticulated

Power Supply: AC110-230V, 50/60Hz Arm Movement Range: Dual arms, 835mm radius each (customizable) Horizontal Rotation: 0-340° for arm and terminal box, independent or simultaneous rotation Load Capacity: ≥180kg Instrument Platform: 3 adjustable layers, 560mm×550mm, with drawer, anti-collision design Gas Outlets: 2 oxygen, 2 suction, 2 air (customizable standards) Electrical Sockets: 10 sockets, 220V, 10A; network interface and grounding terminals included IV Pole: Adjustable stainless steel IV pole Safety Design: Separate power and gas interfaces on tower sides for enhanced safety Material and Finish: High-strength aluminum alloy with electrostatic painting Customizable Options Available Product Paramenter Specification - Details Power Supply - AC 110-230V, 50/60Hz Dual Arm Radius - 835mm + 835mm (Customizable) Arm Thickness - >10mm Horizontal Rotation - 0-340° Independent or Simultaneous Arm and Terminal Box Rotation Net Load Capacity - ≥180kg Instrument Platform - Three-tier, 560mm x 550mm, Adjustable Height, Anti-collision Design, One Drawer Gas Interface Configuration - 2 Oxygen, 2 Suction, 2 Air (Standard: China; Options: EU, UK, US) Gas Interface Features - Color-Coded, Shape-Differentiated, ≥20,000 Insertions, Dual Sealing with Three States (On, Off, Maintenance) Power Outlets - 10 Sockets, 220V, 10A; 1 Network Port; 2 Ground Terminals Adjustable IV Pole - 1 Stainless Steel Pole Safety Design - Electrical/Gas Separation with Side Installation for Safety Surface Treatment - Electrostatic Powder Coating Material - High-Strength Aluminum Alloy Installation - Ceiling Mounted, Stable and Secure Customization - Supported
