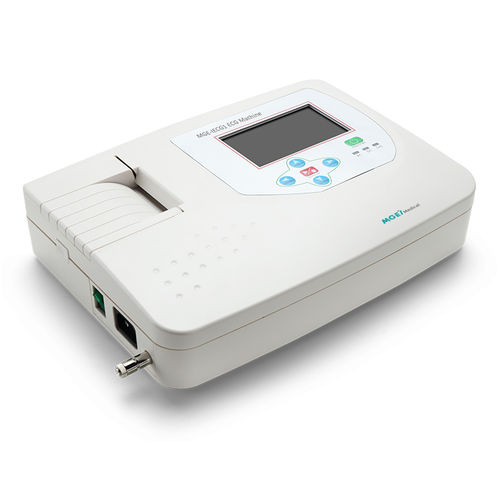

Resting electrocardiograph MGE-IECG1

12-channeldigitalwith printer

The MGE-IECG1 ECG/EKG Machine offers a modern, lightweight, and compact solution for efficient ECG diagnostics. Its advanced features and user-friendly design make it ideal for medical professionals looking to enhance patient care. Key Features: 12-Lead Acquisition: Simultaneously captures and displays 12-channel ECG waveforms on a 4.3″ color touch screen with both push-button and touch operation. Advanced Filters: Includes ADS, HUM, and EMG filters for improved signal quality and accurate results. Automated Functions: Features automatic measurement, calculation, analysis, and waveform freezing. The auto-analyze and diagnostic capabilities enhance workflow efficiency and reduce the workload for doctors. Thermal Printer: Built-in thermal printer with 60mm print paper for synchronized, high-quality printing. Product Description Specification - Details Model - MGE-IECG1 CMRR - ≥ 100dB, with AC Filter Calibrating Voltage - 1mV ± 3% Input Circuit - Floating Voltage Tolerance - ± 500mV Input Circuit Current - ≤ 0.1μ A Time Constant - > 3.2s Resolution - 12 bit / 1000 Hz Frequent Response - 0.05 Hz ~ 150 Hz Operation Mode - Manual / Auto Noise Level - ≤ 15μ Vp-p Filter - AC, EMG Filter Threshold - ≤ 20μ V Drift Filter - Anti-Drift System Paper Speed - 12.5, 25, 50mm/s (± 3%) Input Impedance - > 50MΩ Sensitivity - 5, 10, 20 mm/mV Patient Current Leakage - < 10μ A Recorder - High Resolution Thermal Printer Specification of Fuse - T1.6A 250V Ø5×20 Battery - Built-in rechargeable Li-ion battery 11.1V (4000mAh) Recording Paper - Thermal Recording Paper Package Dimensions - 360mm × 250mm × 68mm (14.2″ x 9.8″ x 2.7″)
