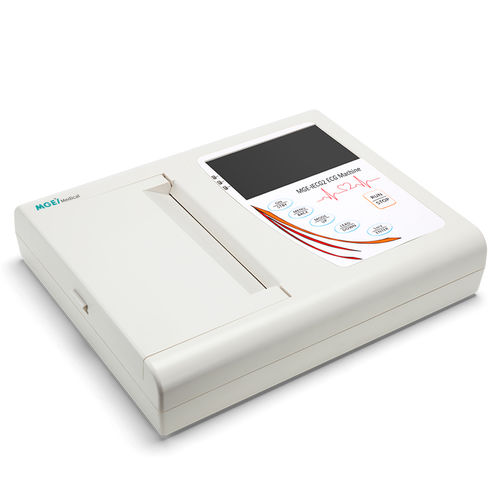

Resting electrocardiograph MGE-IECG12

12-channeldigitalwith printer

The MGE-IECG12 12 Channel ECG Machine is a modern, lightweight, and compact solution designed for accurate and efficient ECG analysis. Its advanced features enhance diagnostic capabilities, improving workflow efficiency in clinical settings. Key Features: 12-Lead Simultaneous Acquisition: Displays 12-channel ECG waveforms on a 7” color touch-screen with both touch and push-button operations. Advanced Filters: Includes ADS, HUM, and EMG filters for accurate readings. Automatic Functions: Measurement, calculation, analysis, and waveform freezing are fully automated, reducing the doctor’s workload and increasing efficiency. High-Resolution Printing: The built-in thermal printer supports 216mm print paper, with a frequency response up to 150Hz. Data Management: Stores over 500 ECG reports in its internal memory and supports USB/SD storage for data transfer. ECG playback software enables report analysis on a PC. Parameters Specification - Details Model - MGE-IECG12 CMRR - ≥ 100dB, with AC Filter Calibrating Voltage - 1mV ± 3% Input Circuit - Floating Voltage Tolerance - ± 500mV Input Circuit Current - ≤ 0.1μ A Time Constant - > 3.2s Resolution - 12 bit / 1000 Hz Frequent Response - 0.05 Hz ~ 150 Hz Operation Mode - Manual / Auto Noise Level - ≤ 15μ Vp-p Filter - AC, EMG Filter Threshold - ≤ 20μ V Drift Filter - Anti-Drift System Paper Speed - 12.5, 25, 50mm/s (± 3%) Input Impedance - > 50MΩ Sensitivity - 5, 10, 20 mm/mV Patient Current Leakage - < 10μ A Recorder - High Resolution Thermal Printer Specification of Fuse - T1.6A 250V Ø5×20 Battery - Built-in rechargeable Li-ion battery 14.8V (4000mAh) Recording Paper - Thermal Recording Paper Package Dimensions - 365mm × 306mm × 109mm (14.4″ x 12″ x 4.3″)
