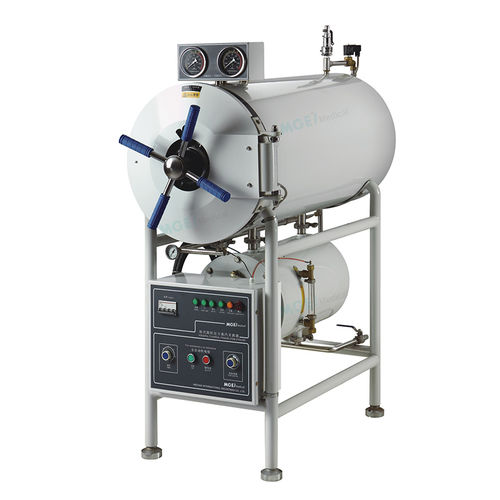

Medical sterilizer MGE-SADA400

steamhorizontalautomatic

The MGE-SADA400 Horizontal Steam Sterilizer is designed for automatic and safe sterilization processes, featuring advanced safety mechanisms and user-friendly controls. It is ideal for sterilizing medical equipment, with additional drying functionality for dressings. Key Features: Automatic Sterilization Control: The sterilization process is fully automated, ensuring ease of operation. Drying Function: Includes a drying feature, making it suitable for drying medical dressings. Over-Temperature & Over-Pressure Protection: Equipped with automatic protection systems for enhanced safety. Safe Door Mechanism: The door remains locked until the chamber pressure is safely reduced below 0.027 MPa. The sterilizer will not start unless the door is properly closed. Automatic Pressure Release: The safety valve automatically opens when pressure exceeds 0.24 MPa, releasing excess steam into the water tank. Water and Power Safety Features: The system will automatically shut off and trigger an alarm when water levels are low, protecting the device from damage. Stainless Steel Chamber: The sterilization chamber is made of durable stainless steel for long-term reliability. Product Paramenter Specification - Details Model - MGE-SADG400 Place of Origin - China Overall Dimensions (L×W×H) - 1430×880×1830mm (56.3×34.6×72 in) Chamber Size (Ø×L) - Ø700×1100mm (27.6×43.3 in) Sterilizing Chamber Volume - 400L (105.7 gal) Working Pressure - 0.22MPa Working Temperature - 134°C Temperature Adjustment - 105°C – 134°C Sterilization Time - 0-60 min Drying Time - 0-60 min Heat Average - ≤±2°C Power - 18KW/380V 50Hz Transport Dimensions (L×W×H) - 1600×1050×2100mm (63×41.3×82.7 in)
