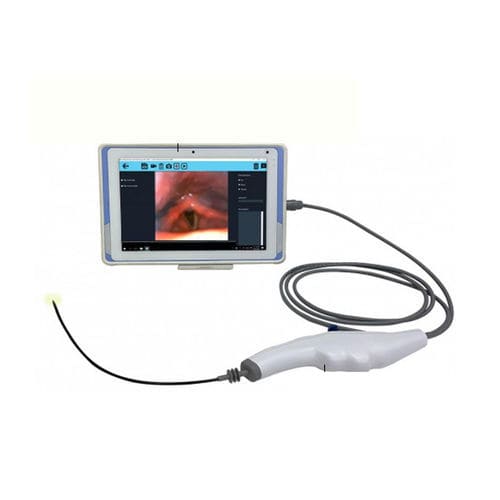

Video rhino-pharyngoscope EES100high-definitionwith integrated video monitorsingle use
Add to favorites
Compare this product
Characteristics
- Type of video endoscope
- video rhino-pharyngoscope
- Optical
- high-definition
- Options
- with integrated video monitor, single use
- Working length
300 mm
(11.8 in)- Operating channel diameter (mm)
3.6 mm
(0.1 in)- Angle of view (°)
130 °
- Direction of view (°)
90 °
Description
Precision Diagnosis - Wide bending angles and precise tip motion
Benefit of Single-use - To prevent cross contamination and eliminate reprocessing and repair costs
Connectivity Options - Easy to transfer the recorded patient images to EMR.
Rapid Prototyping Process
Low Cost
Flexible Design
Specification
Optical Performance
CMOS: 400 x 400
100lux@50 mm
DOF 7~50 mm
Bending Section
Radius 6~7 mm
10.1" Tablet
• Resolution = 1920 x 1200
• 10-point multi-touch
• Windows 10 IoT Enterprise
• 1 x micro HDMI, 1 x USB, 1 x micro SD card reader
• IP65, EN60601-1
• WLAN, BT
14" Tablet
• Resolution = 1920 x 1080
• 10-point multi-touch
• Windows 10 IoT Enterprise
• 1 x HDMI, 3 x USB, 1 x micro SD card reader
• IP65, EN60601-1
• WLAN, BT
• Dual-connector
