The table structure is to minimize the formalin contamination by docking to the existing in-house exhaust system. Peripherally to the inserted through the table has a 30 mm wide gap between the body tray and the side walls through which the vapours are extracted.
Below the body tray is a plenum with a slight slope to the drain.
The drip tray and dump together form a closed chamber, insuring a centrally regulated exhaust air.
The top of the table is shaped as plenum with a central drain hole for body fluids which are lead into a closed collection container so no odours will enter the dissection lab. There is no other opening in the bottom of the trough because of the unique side wall extraction
system.
The extraction of the fumes is done via the extraction slots in the both side walls of the table. The table itself has to be connected to an in-house air extraction system. The underside of the trough is coated with noise dampening material.

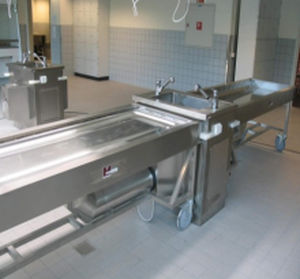

The mobile docking dissection table is functioning by connecting it to a so called docking station
Features
Mobile worktop (body tray) with one closeable drain hole for drainage of body fluids into the plenum and finally into the collection container of the docking station MA-0970 or MA-0971.
The worktop is easily removed from the table for either the transport of the body or for cleaning purposes.
2 x 230V electrical outlets (splash water proof) are present at the docking station for the connection of saws etc.
