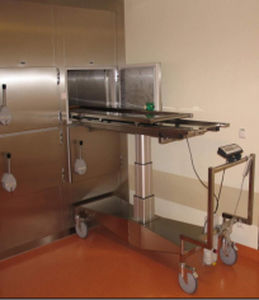

Body tray mortuary cabinet MA-1100

2-bodyfront-loading2-door

Fully hygienic construction for body cooling at +3°C. 2 - tier / 2 small doors. Capacity : 2 corpses Insulation: 80mm polyurethane Foamed with cyclopentane, 100% CFC-free according to norm DIN EN 10204-2.1! 40kg/m³. Insulation: gravity 40kg/m³, heat conductivity 025 acc. to norm EN / DIN 4108. k-value = 0,25 W/m² K (Kelvin) acc. to norm EN / DIN 52612. Heatbridge free, self supporting cell elements in sandwich construction, connection by means of groove & tongue technique and corrosion protected excentric rod strainer for fast installation. The joints between the panels are closed by means of a unique overlapping system which guarantees optimum hygienic conditions. Proposed furnishings inside the cold room 2 x body trays 2 x body tray support for 2 body trays each with 4 height adjustable feet (40mm) for exact positioning of transfer height. Incl. safety break system (stop) in the back of u-rails to avoid contact with rear wall. Note: the body trays and the body tray supports are not included in the delivery of the cell and must be ordered separately!
