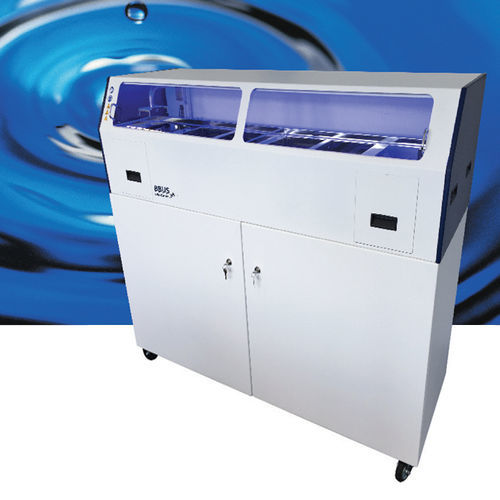

The MedUSe 10-3LK was developed by us after many years of experience and the intensive exchange with dentists and their needs especially for the dental field. It thus represents an innovative cleansing system of the top class for dental practice and fulfills the special requirements of hygiene for modern dental practice.
System concept The plant is a semi-automated and closed multi-chamber system. The instrument basket is loaded manually and was designed as a table model according to the special cleaning and space requirements of a dental practice.
The dental instruments to be cleaned will pass through one high performance ultrasonic, rinsing and one drying chamber, respectively, in baskets specially developed for the plant. As a result, the system designed as a cleaning line is not only a person-speci c, but also e ectively prevents cross-contamination by the operator during the individual cleaning cycles due to the closed system.
Operation - Control The control and / or operation of the system is controlled by the PLC / HMI touch screen control and allows individual programming of various cleaning processes and programs. For example, throughput times, disinfecting agent dosage, ultrasonic frequency, etc., can be exibly programmed and adapted to the respective needs of the individual practices. In addition, the system has a validation system.
Cleaning process The individual baskets rst pass through the pre-cleaning bath, the preliminary cleaning being carried out by means of ultrasound irradiation and disinfecting means.
