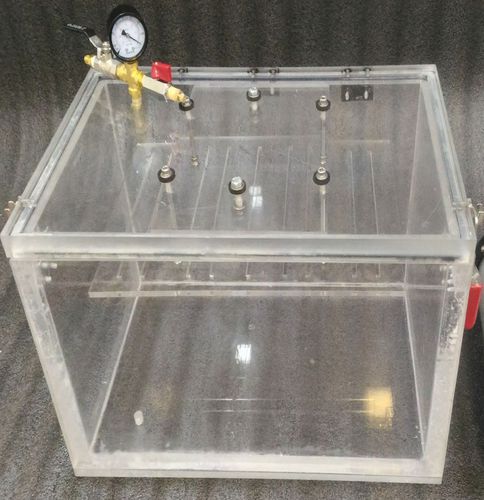

BHFTECH is the largest Manufacturer of clear acrylic cube vacuum chamber in
India. These Chambers are used in a variety of application right from research to
production. The acrylic plastic vacuum chamber is covered with an acrylic vacuum
chamber lid along with vacuum chamber door. This vacuum chamber allows user to
perform specified levels of vacuum pressure inside this vacuum chamber. The
Entire setup can be controlled manually or automated as per the requirement. 7 inch
Touch Screen can be provided on request
Product Features of the Acrylic Vacuum Cube Chamber
Acrylic Plexi-Glass chamber for long-term air-tightness performance.
Burhani Vacuum chamber has a rounded edge at the top, for the protection of silicone gasket.
Vacuum gauge is assembled on a separate port, so that the reading remains accurate even while pumping/venting the chamber.
Gauge reading in both in Hg and Mpa.
All kits are vacuum tested for 24 hours before packaging. (leakage less than 2.0 inHg at 24 hours)
Two-sided flippable vacuum gasket for better durability and reliability.
The gasket is chemically resistant to butane and other solvents.
25 mm thickness Acrylic lid for long life and clear visibility.
Strong elastic food grade silicone vacuum hose can connect/disconnect easily with the pump/chamber.
50um air filter on the vent valve to reduce air flow and prevent any dust/powder flowing into the chamber.
Easy to install and low-cost to maintain: the chamber can be assembled in 5 minutes.
45 day complimentary warranty and life-long parts support.
