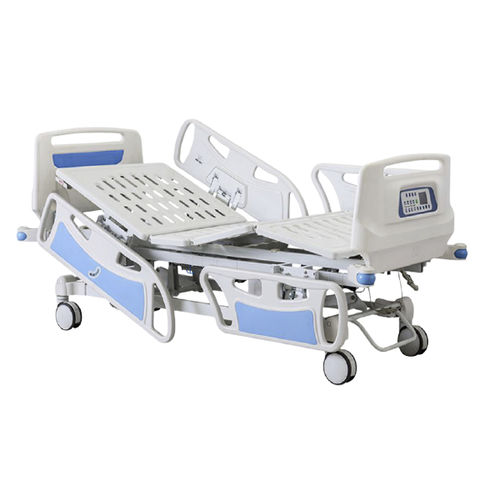

Intensive care bed MVECU5BmanualelectricTrendelenburg
Add to favorites
Compare this product
Characteristics
- Applications
- intensive care
- Operation
- electric, manual
- Features
- Trendelenburg, reverse Trendelenburg
- Component
- on casters
- Number of sections
- 4-section
- Height
Min.: 60 cm
(24 in)Max.: 80 cm
(31 in)- Width
90 cm
(35.4 in)- Length
210 cm
(82.7 in)- Weight capacity
150 kg
(330.7 lb)
Description
Frame work made of rectangular M.S Tube.
ABS moulded head & foot panels.
Telescopic IV Rod with two location.
Backrest, Knee Rest Trendelenburg / Reverse Trendelenburg and Hi-Low Positions obtained by Electric Actuator operated by hand remote system.
4 Section top made of perforated MS Sheet.
ABS tuck away safety side railing.
Bed mounted on 125 mm dia castor (two with brakes)
Finish : Epoxy Powder Coated.
Electrical Specifications input voltage of 100-240 V AC and 50 ~ 60 Hz + 10 %
Rechargeable Maintenance-free batteries for Power backup: 2×12 V.
Four corner rubber buffers for protection during transportation.
Optional : CPR Function on backrest section, ACP Control, Central Braking Castors, Manual Override, Nurse panel , Bed extender, x-ray cassette holder.
Description
Trendelenburg - 0-30°
Reverse Trendelenburg - 0-15°
Leg Section Adjustment - 0-35°
Back- rest Lifting - 0-60°
Knee – rest Lifting - 0-40°
Caster Diameter - 125mm
CPR Function - Standard
Electric Specification Input - 110-230V/50~60 Hz
Power Backup - 12V x 2 Batteries
Switch Mode power supply operating range - 90V to 300V; 47/63 Hz; Max 2A
