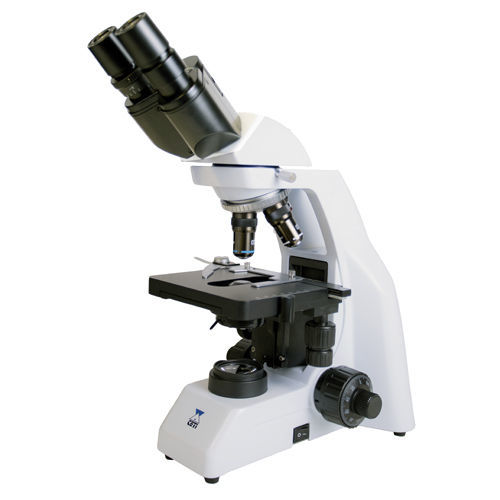

Optical microscope Ceti Max III

compoundlaboratorySiedentopf type

Ceti’s Max III Binocular Compound Microscope with Plan Achromatic Objectives is known for its robust construction and simple operation. This durable microscope is an excellent choice for carrying out everyday applications, especially in teaching laboratories. It is equipped with four high clarity Plan Achromatic objectives. This microscope also has widefield 10x eyepieces, a quadruple reversed nosepiece, mechanical stage and Brightfield Abbe condenser. With a bright white 3W LED light source, this microscope can produce dramatic and high-quality images. Max III Binocular Compound Microscope with Plan Achromatic Objectives is known for its robust construction and simple operation. This durable microscope is an excellent choice for carrying out everyday applications, especially in teaching laboratories. Optical Head Binocular with photo port, inclined at 45° Interpupillary distance adjustment (Siedentopf type): 47 to 78mm Dioptre adjustment on one eyepiece Eyepieces: 10x / 18mm widefield (pointer in one eyepiece) Nosepiece: Quadruple reversed, revolving with click stop Objectives: 4x, 10x, 40x and 100x (oil) Plan Achromatic Condenser: Brightfield Abbe – N.A. 1.25, precentred, focusable with iris diaphragm and filter holder Stage: 160 x 140mm with built-in mechanical stage and slide holder, 75 x 50mm movement, Vernier scale Focusing Knobs: Coaxial coarse and fine with stop Illumination: LED 3W with intensity control (Halogen also available) Mains Power: 100 – 240V, 50 / 60Hz Supplied With: Immersion oil (5ml), blue filter, dust cover, power cord with unique ‘self-store’ system and instruction manual
