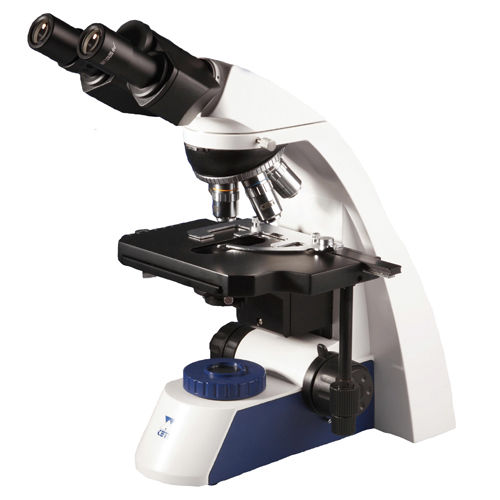

Binocular microscope Magnum

opticalcompoundlaboratory

The Ceti Magnum Binocular Compound Microscope with Semi Plan Achromatic Objectives comes with a selection of semi plan achromatic objectives and a quintuple reversed nosepiece. The Ceti Magnum Binocular Compound Microscope with Semi Plan Achromatic Objectives comes with a selection of semi plan achromatic objectives and a quintuple reversed nosepiece. This biological microscope is ideal for routine use in general QC conditions and routine examinations of slide mounted samples. Optional accessories include a polarising set, phase contrast sets, HBO 100W fluorescent attachment, and dark-field condensers. Features • Sturdy base for comfortable viewing over long periods • Widefield 10x / FN 20 eyepieces with dioptric adjustment • Quintuple, reversed nosepiece with four Semi Plan Achromatic objectives • Binocular eyepiece tube as standard to accept digital microscope cameras • Bright, white LED illumination with intensity control • Full Köhler illumination Specification Optical Head Binocular, inclined at 30° Interpupillary Distance Adjustment (Siedentopf Type): 55 to 75mm Dioptre adjustment on one eyepiece Eyepieces: 10x / 20mm widefield Objectives: 4x, 10x, 40x & 100x (oil) Semi-Plan Achromatic Condenser: Brightfield Abbe (NA 1.25) with iris diaphragm; Pre-condenser with field diaphragm Stage: 210 x 140mm with built-in mechanical stage and slide holder; 90 x 60mm movement, vernier scale Focusing Knobs: Coaxial course and fine with stop and tension adjustment ring Mains Power: 220 – 240V, 50 / 60Hz Illumination: 3W LED with intensity control
