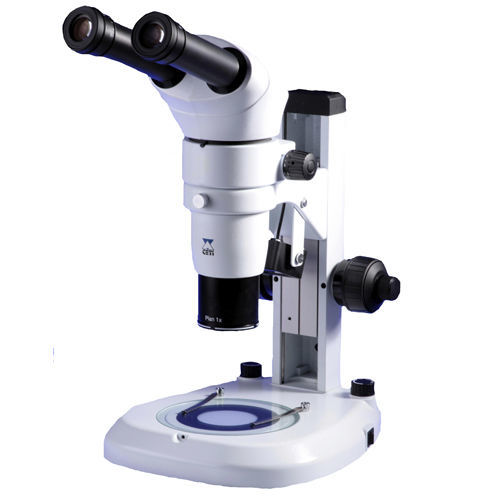

Optical stereo microscope Varizoom-10

biologicalbinocularplan

The Ceti Varizoom-10 Binocular Stereo Microscope is one of our highest specification stereoscopic zoom microscopes with a parallel zoom system utilising optics of the highest quality. A sturdy, rectangular focusing mount enables stability whilst zooming and focusing and the broad stand provides a comfortable base when manipulating samples. Integrated, directional episcopic LED lighting brightly illuminates the sample without the need for awkward goose neck light guides and the transmitted LED lighting provides cool lighting, especially important when working with biological or heat-sensitive samples. Separate intensity controls are located at the rear of the stand so they do not encroach into the working area. Features • Broad, flat base for comfortable working • Super widefield 10x, FN 22 eyepieces for maximum field of view • Optional eyepieces and objectives to easily adjust the zoom magnification range • Dual LED illuimination with separate intensity controls Specification Optical Head Binocular, inclined at 20° Interpupillary Distance Adjustment (Siedentopf Type): 55 to 75mm Dioptre adjustment on both eyepiece tubes Eyepieces: 10x / 22mm super widefield Zoom Ratio: 10:1 Working Distance: 78mm (with Plan Apo 1x / WF) Focusing Mount: Rectangular support with dual coarse and fine focusing knobs and tension control Stage: Frosted glass/black and white contrast plate and 2 slide clip holders Illumination Episcopic: Directional 5W LED Transmitted: 5W LED Mains Power: 220 – 240V / 50 – 60Hz Supplied With: Two rubber eyecups, dust cover, instruction manual and one blue filter
