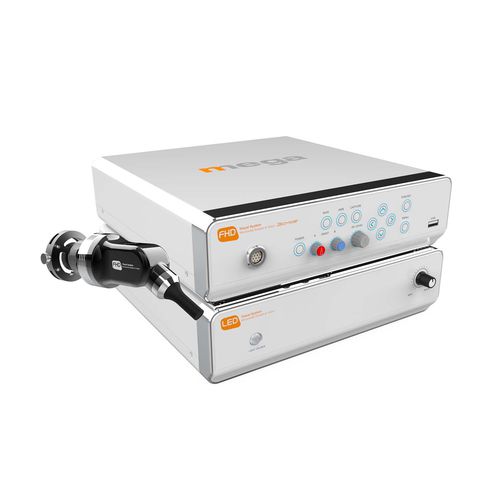

Endoscope camera VS-3CLdigitalfull HD3CMOS
Add to favorites
Compare this product
Characteristics
- Applications
- for endoscopes
- Technology
- digital
- Resolution level
- full HD
- Sensor type
- 3CMOS
- Light source
- with LED light
- Other characteristics
- with USB port
Description
Megamedical ENT Endoscopy Visual System VS-3CL
Features
• Specialized in ENT Surgery using the 3CMOS Visual System
• High Quality LED Light Source
• Light Source CCT 6000K, CRI 90
• Variable Light Intensity
Specifications
Image Sensor - 1/3” 3CMOS FHD
Lens - 15~25mm C-mount
Scan Type - Progressive scan
Image Resolution - 1,920 x 1,080
Aspect Ratio - 16:9
Capture Mode - 1/AVI
Frame Rate - 60p
Recording Media - USB memory, SD-CARD
Video Output - HD-SDI (2Port), DVI (1Port)
Voltage - 110-230V
Frequency - 50/60Hz
Power Consumption
Camera: Approx. 50W,
Light Source: Approx. 70W
Weight
Main Body & Light Source : Approx. 3kg
Camera : Approx. 100g
Dimension
Main Body & Light Source :
260mm (W) x 270mm (D) x 71mm (H) ± 10 %
Camera :
49mm(W) x 131mm(D) ± 10 %
Standard Accessories
3CMOS Full-HD Camera 1
3 Way Foot Switch 1
Light Guide 1
Video Cable 1
Power Cord 1
Optional Accessories
Medical Monitor
Monitor Holder
Cart
Camera Holder
Endoscope
