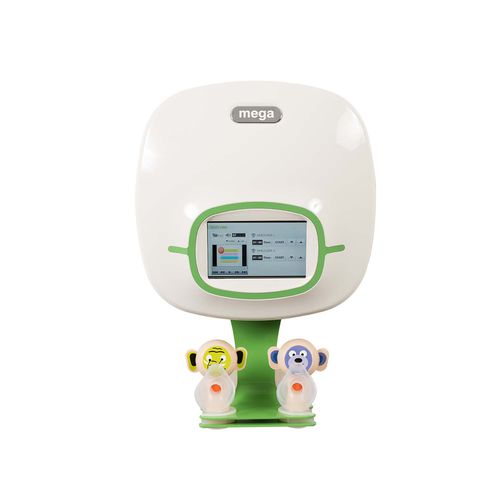

Megamedical Respiratory Treatment System RESPY
Product Specifications
RS-1000
Pressure (Nebulizer) - 3.5Kg/ ㎠ ±10%
Particle size - 5.0 ㎛
Nebulizer rate - 0.2cc /min ± 10%
Operation time - 30 min (max)
Power consumption - 170W
Power input - AC 220V, 50/60Hz
Weight - 8.5 kg
Dimension (W*D*H) - 322*130*527mm
LCD monitor - 7 in (800*480mm)
Standard Accessories
Nebulizer kit (disposable) - 2 set
Mouth piece - 2 pcs
RS-2000
Pressure(spray, irrigation) - 3.5Kg/ ㎠ ±10%
Pressure (suction ) - 250 mmHg
Heating System - 35 ℃~38 ℃
RS-2100
Pressure(irrigation) - 3.5Kg/ ㎠ ±10%
Heating System - 35 ℃~38 ℃
Injection capacity - 1.2cc/min±20%
Operating time - 30min (max)
Power consumption - 130W
Power input - AC 220V, 50/60Hz
Weight - 12kg
Dimension (W*D*H) - 322*160*622mm
LCD monitor - 7 in(800*480mm)
Standard Accessories
Nasal Cavity Washing Kit - 2 pcs
Controller - 2 pcs
RS-3000
Infrared Wavelength - 950 nm ±10%
Infrared output - 2.5 mW/㎠ ± 20%
Operating time - 30 min (max)
Power consumption - 55W
Power input - AC 220V, 50/60Hz
Weight - 3.5kg
Dimension (W*D*H) - 322*130*527mm
LCD monitor - 7 in(800*480mm)
Standard accessories
Infra red gun (ear/throat) - 2 pcs
Infra red lamp - 2 pcs
RS-4000
Infrared laser Wavelength - 700nm ± 10%
Output - 1.8㎼ ±20%
Ultraviolet laser Wave-length - 365 nm ±10%
Output - 5.5 ㎼ ±20%
Operating time - 30 min (max)
Power consumption - 7W
Power input - AC 220V, 50/60Hz
Weight - 6kg
Dimension (W*D*H) - 322*130*534mm
LCD monitor - 7 in(800*480mm)
Standard accessories
Nose probe - 2 pcs
Ear probe - 1 pc
Nose probe tip (disposable) - 100 pcs
Ear probe tip (disposable) - 20 pcs
RS-6000(additional available function of other accessories)
