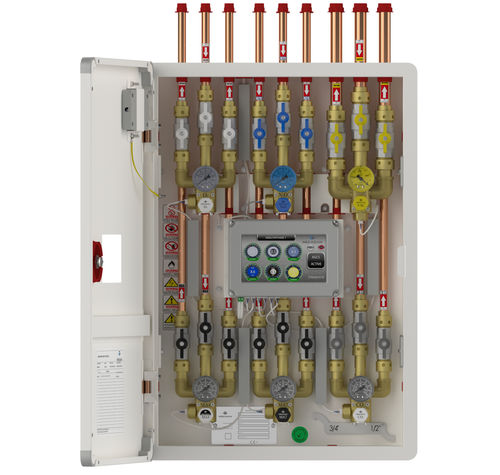

Gas control unit MG-KKAx-y

medicalfor medical gas plantsmonitoring

These are the panels that ensures the control of the medical gases at the relevant service point after they leave the power plants and give an alarm if the line pressure falls below or exceeds the limit value. Regional service units are manufactured in two types as flush-mounted and surface-mounted models. Regional service units are divided into two types as pressure unregulated and pressure regulated; regulated units, the pressure value in regulated units can be adjusted to the desired value for the continuation of the relevant line. Regulator units are available with By-Pass regulator as an option. Intended Use It is used to warn the user when the pressure values are out of limit, by monitoring the pressures in the pipeline constantly. These products also maintain gas separation of the departments such as operating theatres, intensive care, patient floors of hospitals from the main line and keeping the gas pressure in balance. It ensures that the gas flow is cut off in emergencies or during service and the line is completely isolated and made safe. Place of Use It is used in places such as operating theatres, intensive care, patient floors of hospitals where they need to be separated from the main line in emergency and service situations. Product Conforming to the following standards ✓ EN ISO 15223-1:2021 ✓ EN ISO 10524-4:2008 ✓ EN 60601-1:2009 ✓ EN 62366-1:2015 ✓ EN ISO 20417:2021 ✓ EN 60601-1-2:2016 ✓ EN ISO 11197:2016 ✓ EN ISO 7396-1:2016 ✓ EN 60601-1-8:2008 ✓ EN ISO 14971:2020 ✓ EN ISO 21969:2010 ✓ EN 62304:2009 ✓ EN ISO 15002:2010 ✓ HTM 02-01
