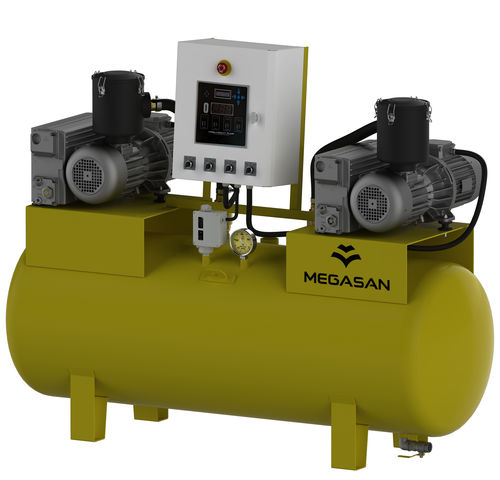

Medical vacuum system MG-VS series

It is installed in areas where the medical vacuum requirement is low or where the plant’s settlement area is narrow. Medical Vacuum Plant provides medical vacuum gas which meets hospital needs. Features Control Panel It has ability to show the pressure value in the line; It is the panel that gives visual and audible alarms when the vacuum pressure falls below the set pressure value, can repeat the given alarms and keep them recorded, and cannot be accessed by unauthorized personnel, because of its password. Automatic By help of the vacuumustat on the vacuum tank, it automatically activates the vacuum plant when the vacuum pressure in the line drops below the desired value. Filter Group It ensures that the waste materials coming from the medical vacuum installation are filtered in the filter, preventing damage to the vacuum plant and its tank, thus increasing its service life. By-pass System It is the system used to continue the gas flow to the relevant terminal unit where the distribution is made, in service maintenance and similar situations. Mechanical Reading In case of power failure, it enables to monitor the vacuum pressure value in the vacuum line by a manometer gauge on the receiver vessel. Equal Working Time Control System (Optional) The vacuum power plant ensures that 2 or more different vacuum pumps work in sequence at certain time intervals during operation, thus providing fuel savings and prolonging the pump life.
