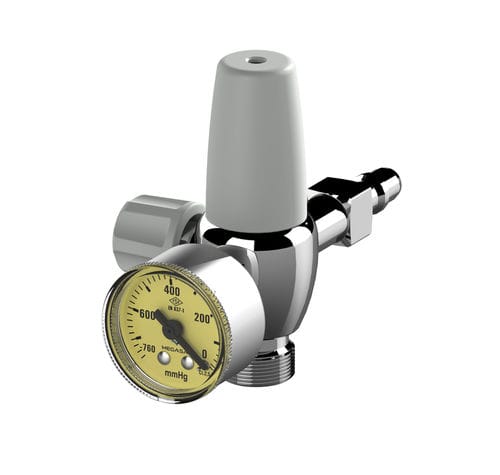

Integrated vacuum regulator MG-VRMA

It is designed for hospitals where vacuum production facilities and/or pipeline are not available, and it achieves a vacuum power of approximately -800 mbar through by venturi system that uses medical air or oxygen Technical information Max. Suction : -800 mbar -1000 mmHg Weight : 230 gr Max. suction flow : 40 L/min. ± 5 L/min. at - 800 mbar Adjustable max. Pressure : -800 mbar Vacuum manometer : 0 / -760 mbar Air consumption at max. suction value : 60 L/min ± 2 L/min Noise level : <68 Db Gas and pressure supplied : Compressed air 400kPa (4.0 bar)±%10 Standard input connection : ISO G.1/4 Standard output connection : Integrated lug and threads for easy disassembly and assembly Hose holder G 1/8’’ Thread connection Features Low Decibel During venturi operation, a silencer system is in place to prevent the noise generated during gas flow discharge. Ergonomic Handle The regulator’s ergonomic adjustment handle grip allow personnels in charge to adjust the settings easily. Assembly and Disassembly The ease of assembly and disassembly of vacuum niplles and safety jars is achieved through the integrated lugs and G1/2’’ thread connection.
