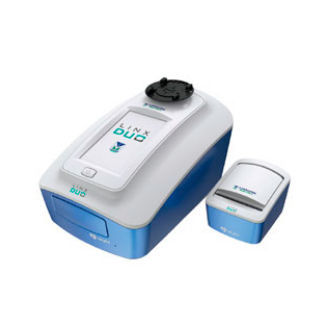

Immunoassay POC analyzer LINX DUO

colorimetricautomatedturbidimetric

MEETING THE CLINICAL DEMAND FOR QUICK, RELIABLE RESULTS WHEN AND WHERE THEY ARE NEEDED Microsampling without pretreatment (capillary or venous blood) Get results in a few minutes Two specimens per run No need to warm up reagents before testing Fully automated operations Thermal printer and data manager PC software supported Maintenance free Intuitive user interface and multiple language functions TECHNICAL DATA Display and interface 5” TFT color LCD touch screen Memory capacity 50,000 test results Dimensions (analyzer) 270 x 188 x 148 mm Weight (analyzer) 1.7 kg Dimensions (printer) 134 x 100 x 82.7 mm Weight (printer) 0.37 kg Power supply 100-240 V (AC), 50-60 Hz Data transmission USB 2.0 (4 ports); micro USB 3.0 (1 port); RS232 (1 port); RJ45 Ethernet (1 port); WLAN (optional Wi-Fi dongle) Reagent storage 2-8 °C Reagent stability at RT (15-25 °C) HbA1c: 3 months; CRP: 1 month; Lipid Panel Plus: 3 months Operating conditions 10-32 °C, relative humidity <95% (non-condensing)
