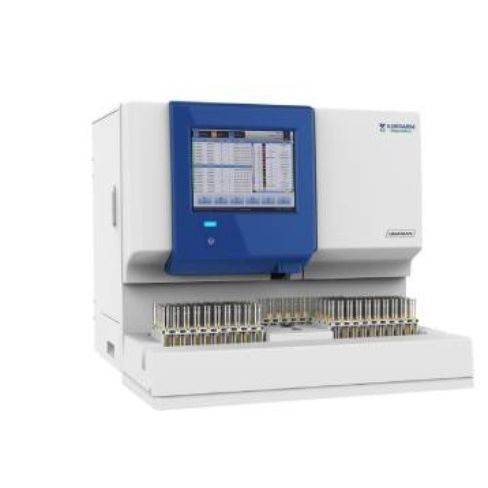

Automatic clinical chemistry analyzer UNAMAX
for clinical diagnosticbenchtopurine

Automatic clinical chemistry analyzer - UNAMAX - Menarini Diagnostics - for clinical diagnostic / benchtop / urine
Automatic clinical chemistry analyzer - UNAMAX - Menarini Diagnostics - for clinical diagnostic / benchtop / urine
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
for clinical diagnostic
Configuration
benchtop
Sample type
urine
Options
with touchscreen
Throughput

360 p/h

Sample volume

2 ml
(0.067628 US fl oz)

Weight

76 kg
(167.6 lb)

Length

660 mm
(26 in)

Width

680 mm
(26.8 in)

Height

570 mm
(22.4 in)

Description

UNAMAX is the new A. Menarini Diagnostics urine chemistry analyzer that offers a fully automated approach, maximum productivity and improved analytical performance. UNAMAX can evaluate up to 14 chemical parameters, including ascorbic acid, creatinine, microalbumin, and calcium, as well as 3 physical parameters using the physical module, to deliver high-quality, accurate results. UNAMAX has a throughput of 360 samples/hour and has an easy-to-use 10.4-inch color touchscreen that displays the real strip image for review. The system is equipped with automatic RFID rack recognition for better sample traceability. The constant temperature control ensures the best reaction environment and avoids temperature interference. ADVANCED AUTOMATION AND IMPROVED ACCURACY Fully automated Contact image sensors (CIS) scanning technology with 5 wavelengths for greater accuracy and efficiency Low sample volume needed (at least 2 ml) with liquid level detection sensor Precise sample dropping technology Automatic enhanced washing for high concentration samples Constant temperature control to avoid interference Automated quality control analysis and maintenance procedures ENHANCED PRODUCTIVITY AND TRACEABILITY Strip loading capacity: 500 strips RFID rack reader MEASUREMENT FEATURES AND CLINICAL UTILITY Up to 14 chemical parameters, including ascorbic acid, creatinine, microalbumin, and calcium Albumin-to-creatinine ratio (ACR) to identify early-stage kidney disease 3 different types of strips available (LabUSticks 11F, 12F and 14 F ) Physical module ensuring accurate specific gravity, turbidity, and color results Real-time strip reaction color for reviewing EASE OF USE AND LIS INTEGRATION
