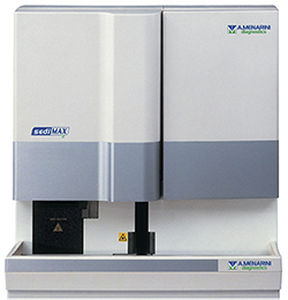

Automatic urine sediment analyzer sediMAX2

for clinical diagnosticbenchtop

SediMAX2 is a significant upgrade of sediMAX with major software and hardware developments. Numerous new features improve user experience and reliability. Up to 120 measurements/hour throughput. For better and better images. Which supports evalution of images captured with the same camera as well. Does not require yearly maintenance. Quieter operation and more precise movements. The evalution module now recognises cocci and rod bacteria separately. The instrument performs sample identification, mixing, aspiration into the cuvette and centrifugration. After the cuvette arrives at the microscope the user has the option to move the cuvette via on-screen buttons and take images of any area of the cuvette, changing focusing height. During the process the user has a live view of the cuvette. Images taken are then evaluated by the new evalution module. TECHNICAL DATA Sample Preparation Automatic, on-board - - Sample volume 2 mL - - Analysis volume 0.2 mL (200 μL) - - Throughput Up to 120 samples/hr - - Load capacity 100 sample tubes (10 samples x 10 racks) Sample tube spec Ht 100 – 105 mm, Diam 16 – 17.5 mm - Barcode reader On-board sediMAX cuvette pack 50 cuvettes in 12 towers (600 cuvettes in total) Cuvette carousel capacity 600 cuvettes (50 x 12 towers) Centrifuge On-board. 2000 rpm for 10 secs per sample Final result Particle concentration (p/HPF or p/μL) & identified category Detected particles RBC, WBC, Hyaline casts, Pathological casts, Epithelial cells, Small round cells, Bacteria, Yeasts, Crystals (Calcium oxalate monohydrate, Calcium oxalate dihydrate, Uric acid, Tri-phosphate), Mucus, Sperm
