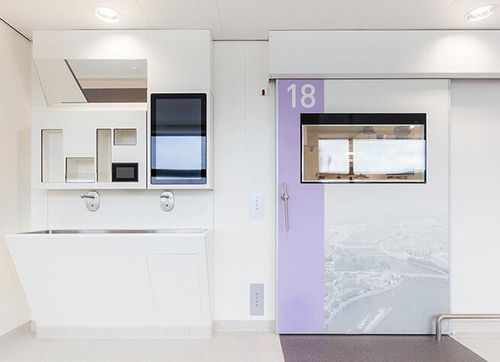

Radiation protection door Medicare

fire-ratedoperating roomintensive care

The Metaflex Medicare the ideal sliding door for the healthcare sector and the medical and pharmaceutical industry. A good choice for your operating room, preparation room, pharmacy, radiation-sealed room, quarantine room, fire partitions and clean rooms. The Medicare offers a complete hermetic seal and can be completely tailored to your wishes with radiation-proof, noise-reducing and fire-resistant properties. When opening and closing the Medicare sliding door, hardly any air movement is created. In situations with conditioned or contaminated air behind the door, this is very important. The airtight seal maintains the overpressure up to at least 100 pascal without leakage (ANSI/UL1784). In addition, this door system passed the highest classification 4 according to DIN EN 12207. The unique closing system ensures that the door also retains its airtight seal in case of significant under- or overpressure. Uncontrolled air flow through your doors can thus be prevented. Properties Finishing Completely smooth Free passage Equal to inside frame width (flush opener) or - 120 mm with hygienic opener Inside frame width (mm) 800 to 2,100 Inside frame height (mm) 2,100 to 2,700 Window 400 x 400, 300 x 600 or 600 x 600 mm Window options - Screenline blinding and Smart Glass Airtight Yes, according to EN 1026/12207 class D (4) Smoke-proof Possible in accordance with EN 1634-3 standard Fire-resistant Yes, see Medicare EI1 Radiation-proof - 1-3 mm lead inlay Noise-reducing Rw value: standard 28 dB, possible up to 43 dB Rwp value: standard 27 dB, possible up to 37 dB 100% freedom of design Yes, by means of Imagine foil Medical earthing G1, G2 Declaration of Conformity CE marked
