Temperature sensor ME751

pressurecalibrationmedical

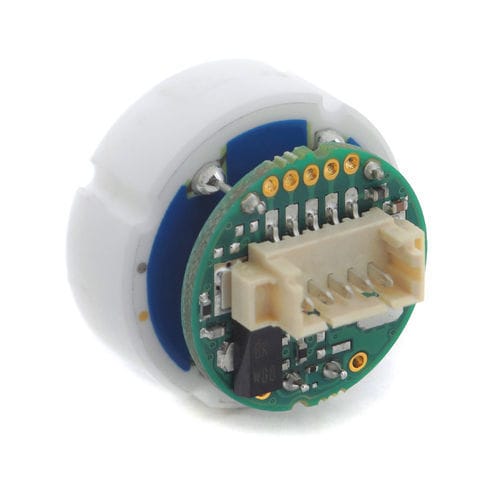

Monolithic, 4 - 20 mA Current loop output, pressure transducer Metallux ME751 monolithic piezoresistive pressure sensors for gauge pressure measurement. High reliability. Integrated signal conditioning 4 - 20 mA Current loop calibrated and compensated pressure transducers. Metallux ME751 monolithic pressure sensors made with ceramic cell and work following the piezoresistive principle. The Wheatstone bridge is screen printed directly on one side of the ceramic diaphragm by means of Thick-Film technology and signal conditioning electronics are added to generate current loop 4...20 mA output. Also available in customized version I2C output. Pressure and temperature calibration are done electronically with the on-board ASIC and can be performed in bar (ME751) or in psi (MEP751). Electronics provide offset and span correction when temperature changes. Aging detection is constantly performed. This new method guarantees good precision and long-term stability. The Metallux ME751 family meets EMC requirements. The ASIC stores production lot specific data for sensor traceability and allows custom calibration. Due to the excellent chemical immunity of the the Al2O3 ceramic, the ME751 sensors are suitable for nearly all aggressive media.
