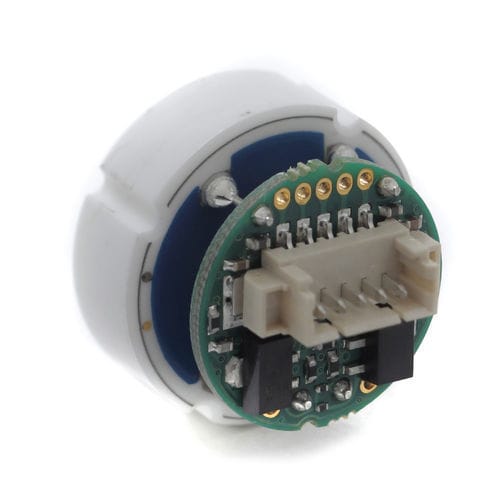

Temperature sensor ME752

pressurecalibrationmedical

Monolithic, 0 - 10 V Non ratiometric output, pressure transducer Metallux ME752 monolithic piezoresistive pressure sensors for gauge pressure measurement. High reliability. Integrated signal conditioning 0 - 10 V Non ratiometric calibrated and compensated pressure transducers. Metallux ME752 monolithic pressure sensors made with ceramic cell and work following the piezoresistive principle. The Wheatstone bridge is screen printed directly on one side of the ceramic diaphragm by means of Thick-Film technology and signal conditioning electronics are added to generater 0...10 V non ratiometric output. Also available in customized version I2C output. Pressure and temperature calibration are done electronically with the on-board ASIC and can be performed in bar (ME752) or in psi (MEP752). Electronics provide offset and span correction when temperature changes. Aging detection is constantly performed. This new method guarantees good precision and long-term stability. The Metallux ME752 family meets EMC requirements. The ASIC stores production lot specific data for sensor traceability and allows custom calibration. Due to the excellent chemical immunity of the the Al2O3 ceramic, the ME752 sensors are suitable for nearly all aggressive media.
