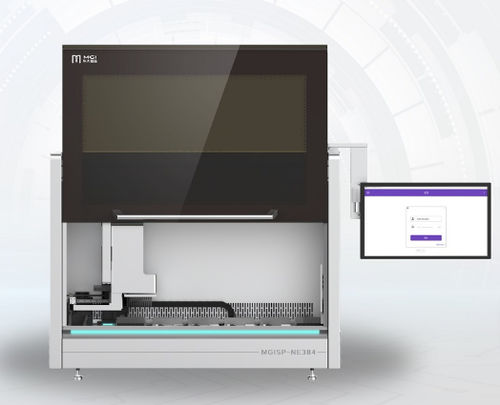

Clinical diagnostic nucleic acid extractor MGISP-NE384

fully automated

MGISP-NE384 is a high-throughput automated nucleic acid extractor adopting magnetic rod technology. Together with nucleic acid extraction kit, MGISP-NE384 is able to extract and purify nucleic acid from 96/192/288/384 samples. HEPA filtration system and UV lamp, ensure a safe working environment for nucleic acid extraction and lab technicians. Flexible: Mixing and magnetic module Z axis independent control, 1-4 modules running choice for 96/192/288/384 samples. Efficient: Moving and processing magnetic particles, extracting and purifying nucleic acid from 384 samples. Safe: HEPA filtration system and UV lamp, avoiding cross-contamination and ensuring a safe working environment. Stable: Reliable hardware design, 96-well plate reagent and disposable tip, minimizing operational errors. Working Environment Temperature: 19 ℃ ~ 25 ℃ Relative humidity: 20% RH ~ 80% RH Atmospheric pressure: 80 kPa ~ 106 kPa Power Supply & Dimensions & Weight Power Supply: 200-240V, 50/60Hz, 2350W Dimensions: length:1220mm; width: 742mm; height: 960mm Weight: 268kg
