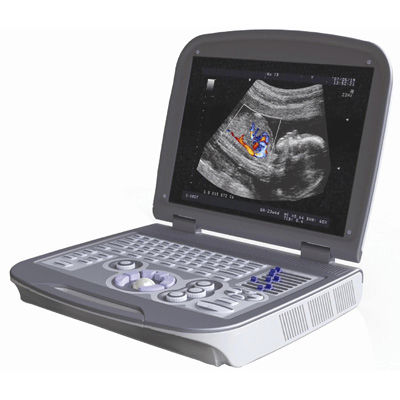

Portable ultrasound system 6600PLUS

for multipurpose ultrasound imagingB/Wcolor doppler

6600PLUS-notebook full digital color Doppler diagnostic by the host (with monitor), the probe. Compact magnesium alloy body shell notebook loaded with non-embedded Multi-Core multi-core processing platform, imaging efficiency is greatly improved, and can give users a high-speed, multi-task parallel signal processing experience. Excellent image, strong functional experience, rich selection of probes, reasonably portable design, full Chinese display and patient management interface. Function and main technical parameters Scan Mode: Electronic convex array / HF / cavity. Display mode: B, B / B, B / M, M, 4B. Scanning depth: 242mm. Grayscale: 256. Image magnification: × 0.8 × 0.2 × 0.5 × 0.8. Resolution: the lateral l mm longitudinal l mm. Contrast: 1200: 1. Viewing Angle: 88/88/88/88. Enhance the depth: B, B + B mode real-time improvement. T Video output: PAL-D VGA. USB interface: 1. Permanent storage: 324. Pseudo-color processing: built-in. The probe configuration: 3.5MHz electronic convex array. The total gain: 0 ~ 99dB. Near-field gain: 0 to 40dB. The far-field gain: 0 to 40dB. Clinic for routine ultrasound examination of the cardiovascular, abdominal, maternity, organs and musculoskeletal, neurological, brain surgery secondary inspection.
