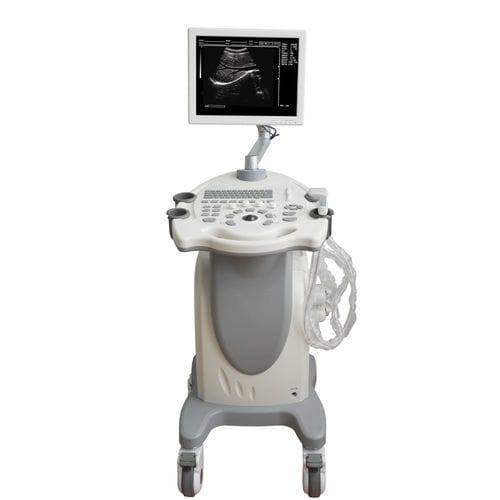

On-platform ultrasound system MDK-9300

for multipurpose ultrasound imagingB/W15-inch

The MDK-9300 equipment is a high-resolution convex array/ line array scanning ultrasound diagnostic system, which has the characteristics of high-definition images, high stability and high resolution. Image Storage 64 Frame Display Depth - ≧16 Scanning Model Electronic Linear Array, Electronic Convex Array LCD Size 12 Inch/ 15Inch Gray Scale 256 Levels Image Flip Up/ Down, Left/ Right, Blake/ White Image Processing Image Smoothing/ Sharpening, Tissue Harmonic, Histogram, DR, Gamma Correction, Pseudo-Color Measurement Freehand, Ellips, Distance for Perimeter, Area Volume, Heart, G.A, EDD, BPD-FW, FL, AC, HC, CRL, AD, GS, LMP Character Display Date, Clock, Name, PID, Age, Sex, Hospital Name, Doctor Notation Full-screen Character Editor, Body Mark, Position Indication Report Abdomen and gynecology, Cardiac, Obstetrics, Urology Display Mode B, B+B, B+M, M, 4B Scanning Angle Adjustable Cine Loop ≥400 Frames Output VGA and PAL video outputs Power Consumption MAX 100VA Carton Size 680×460×1200mm
