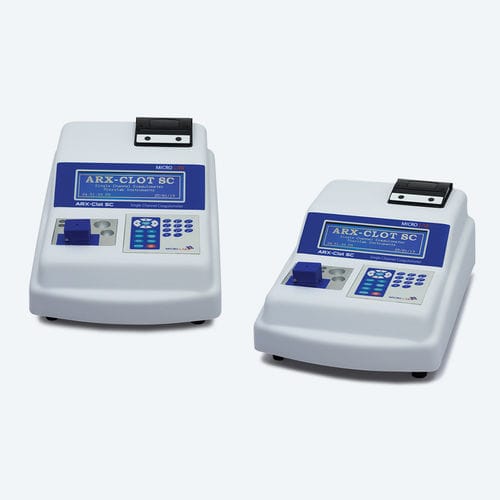

Semi-automatic coagulometer ARX-CLOT SC

1-channelPTAPTT

Semi-automatic Single channel coagulometer Printout of the graph and results On-board storage capability up to 20 assays Open system with user friendly software All methods creatable, editable, copy and delete Automated calculation results in seconds, %, INR, g/l, mg/dl, Ratio Calibration/reference curves editable up to 9 measurement points Automatic start-pipette connectable Automated cuvette detection and calculation Data transmission to SD-card or external PC (Optional) Technical Specification ASSAYS PT, APTT, Fibrinogen (g/l, mg/dl), TT, Single Factors (FII to FXII) PRINCIPLE Turbodensitometric with automated start function MEASURING UNIT 405/640 nm filter and LED light source Controlled at 37.0°C +/- 0.2°C Single operating measuring channels 2 reagent positions 8 cuvette incubation positions TEST VOLUME Micro cuvette for single use Optimized mixture of sample & reagent Total minimum 75μl maximum 300μl DISPLAY LCD: 240 x 64 pixels Blue back lit MEMORY 1000 test results and 20 assays UNITS Seconds, % activity, ratio, INR g/L and mg/L PRINTER Integrated thermal printer INTERFACES RS232C POWER Voltage - 100-220 V Frequency - 50 - 60 Hz Temperature - 15° to 40° C Humidity - 10% t0 85%
