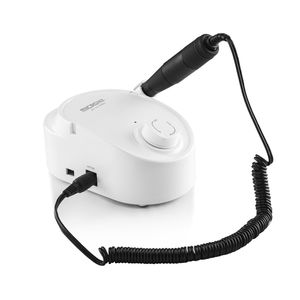

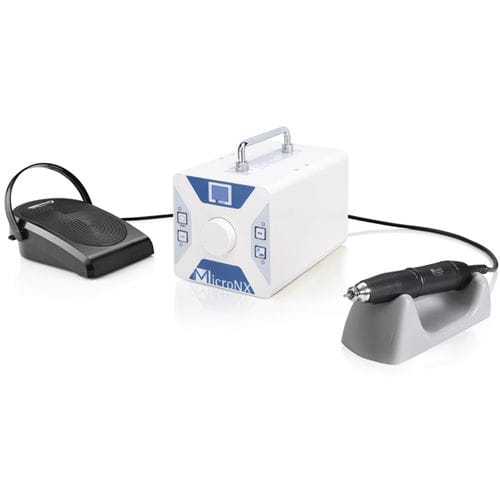

Dental micromotor BL-F(D)
electricDCfoot-operated

Dental micromotor - BL-F(D) - Micro-NX - electric / DC / foot-operated
Dental micromotor - BL-F(D) - Micro-NX - electric / DC / foot-operated
Dental micromotor - BL-F(D) - Micro-NX - electric / DC / foot-operated - image - 2
Dental micromotor - BL-F(D) - Micro-NX - electric / DC / foot-operated - image - 3
Dental micromotor - BL-F(D) - Micro-NX - electric / DC / foot-operated - image - 4
Add to favorites
Compare this product


Characteristics

Applications
dental
Operation
electric, DC
Ergonomics
foot-operated
Speed

50,000 rpm
(314,159.3 rad.min-1)

Description

Low noise Low vibration efficiency Brushless type motor. - Auto cruise Function It is automatically operated with the value set in the setting window without using the speed controller. Max. speed setting Function The maximum speed can be set without dial adjustment. Reverse / Forward Function Turn the power on and run the motor to rotate clockwise. Press the direction button to rotate counterclockwise. Various control Two speed control methods for feet, and hands allow for flexible use according to the operator's convenience. Speed control pedal A handle is requested and is convenient for movement. Function Motor Operation controller Class of protection IPX1 Input 120/230 V Output DC 0 - 30 V Frequency 50 / 60 Hz Max. current 3A Weight 2.5Kg Dimension 125mm(W)x l90mm(W)x l20mm(H) handpiece Max.Torque 7.0 N.cm Weight 190g Bur HP bur 02.35(mm) Internai water spray Yes
