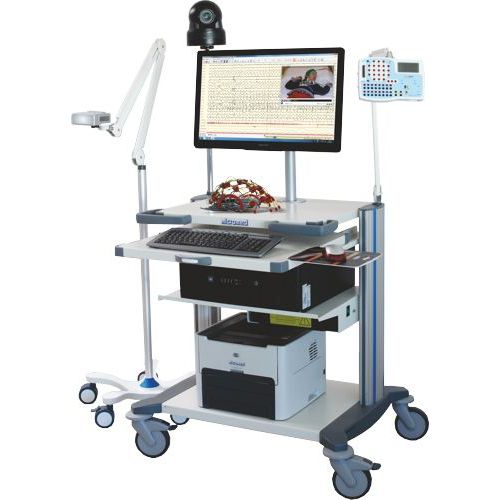

256-channel EEG system BRAIN QUICK ®

48-channelwith evoked potential monitoringwith polysomnography

CLINICAL EEG LINE This easy to use system includes the SD PLUS™ amplifier which is available in a variety of configurations to suit any application from routine EEG studies to clinical research. Powered by BRAIN QUICK review and analysis software, the SD PLUS is a powerful and versatile amplifier offering high quality signal integrity and enough durability to withstand the demands of the busiest Hospital, Research or Neurology lab. System Key Features: High Sampling Rate up to 16 KHz LCD display for impedance checks and warnings Easy set up and configuration Durable and sturdy design Seamless integration with with any hospital network Intuitive and easy to use BRAIN QUICK review and analysis software Ergonomic cart with easy height adjustment and extra storage All channels can be switched to DC independently Technical Data 24 bit ADC, Bandwidth DC up to 4,4 KHz High Sampling Rate, up to 16 KHz 40 Common Ref. Ch., 16 can be Bipolar (Research) 40 / 32 Common Reference EEG Channels 2 Bipolar Inputs for Evoked Potentials 2 Channels for Inductive Belt 3 Pulse Oxymeter Channels (SP02 , HR, Pulse) 1 Marker Channel All Channels can be switched to DC independently Impedance Quality LED on every input 2 inductive belt channels LCD Display Dimensions 19 L x 13 W x 2.5 H cm or 7.5″ L x 5″W x 0.98 H 390 g or 0.9 lbs Durable plastic casing
