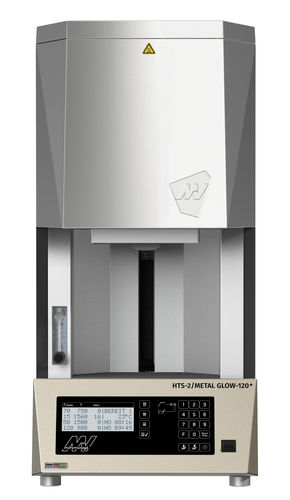

Annealing furnace HTS-2/METAL GLOW-120+
heatingsinteringlaboratory

Annealing furnace - HTS-2/METAL GLOW-120+ - MIHM-VOGT - heating / sintering / laboratory

Annealing furnace - HTS-2/METAL GLOW-120+ - MIHM-VOGT - heating / sintering / laboratory - image - 2

Add to favorites

Compare this product

Go to the MIHM-VOGT website for more information

Characteristics

Function: heating, sintering, annealing
Applications: laboratory
Temperature range: 1,400 °C
(2,552 °F)

Description

MAX. USABLE CHAMBER CAPACITY Ø 120 / 100 mm SHIELDING-GAS SYSTEM Glowing without shielding gas System GLOW Ø 120 Sintering system METAL Ø 120 Sintering system METAL Ø 100 TECHNICAL DATA Power max. - 3000 W Voltage range; frequency - 200-240 V ; 50/60 Hz Weight - 63 kg Dimensions W/D/H - 390/540/800 mm Thermocouple - PtRh-Pt, Typ S Temperature accuracy at 1300°C (in °C) - +/- 2°C Heating chamber height - 100 mm * not included in the scope of delivery PROGRAM CONTROL Max. rise in temperature (in °C/min) - 40 Program capacity - 30 Number of programmable heating / cooling stages - 9 Special functions - Interface RS-232 Timer function Argon supply Start/Stop programmable FEATURES Max. Usable chamber capacity Ø 120 / 100 mm Shielding-gas system Glowing without shielding gas System GLOW Ø 120 Sintering system METAL Ø 120 Sintering system METAL Ø 100
